390.0mm     280.0mm       59.0mm         7KG
LENGTH       WIDTH       HEIGHT     WEIGHT

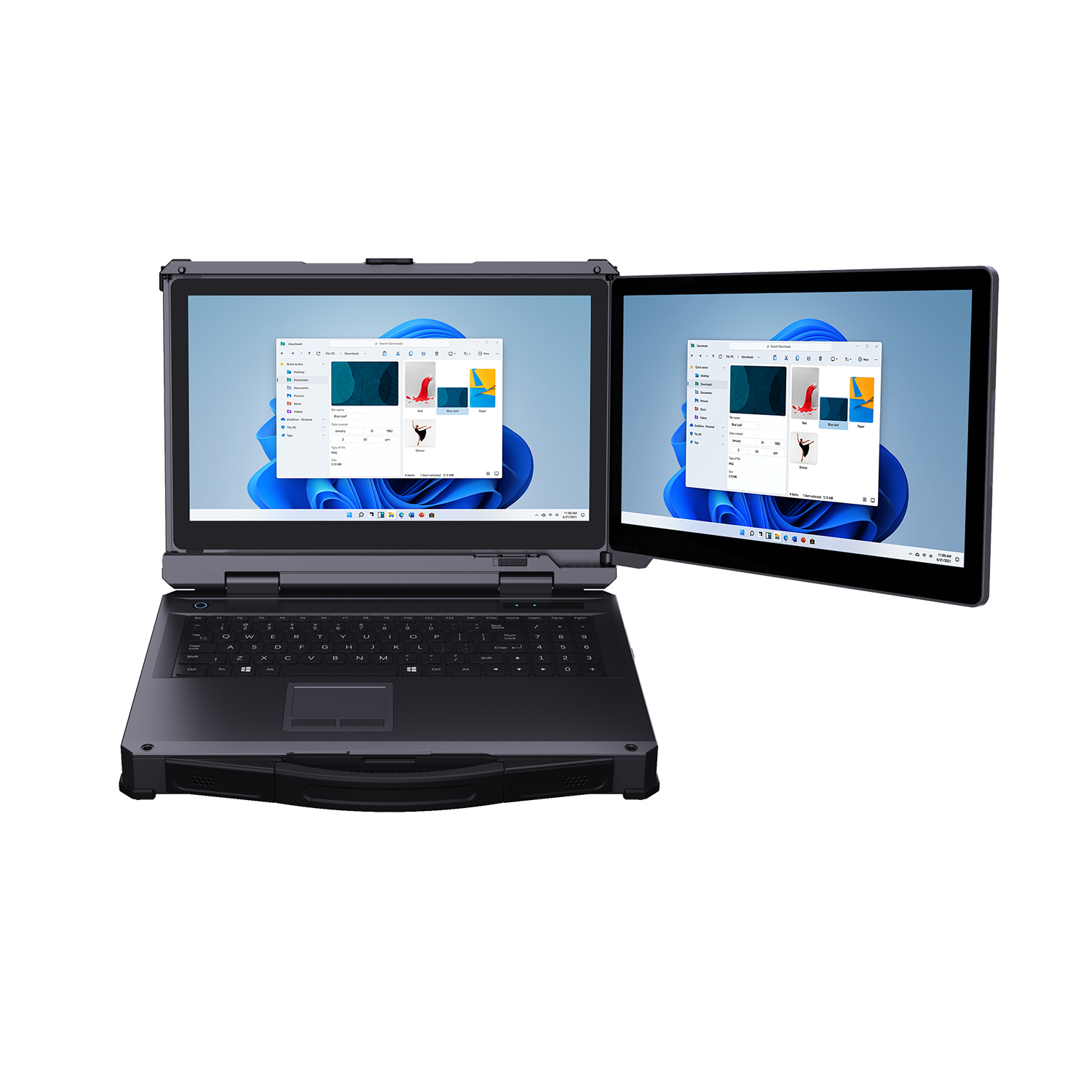

Display Size: 15.6" LED High-Definition High-Brightness Dual LCD Displays Battery: Standard 6600mAh Li-ion Battery
RAM: Standard 16GB DDR4 RAM

RGD-LTP-Y702

Detail
TECHNICAL SPECIFICATIONS:
Display15.6" LED High-Definition High-Brightness Dual LCD Displays, 1080p resolution
CPUStandard: Intel Core i9-13900HK 14-Core Processor, Max Turbo Frequency 5.4GHz
GPUStandard NVIDIA RTX 3070M 16GB Discrete GPU
Memory (RAM)Standard 16GB DDR4 RAM, Dual-Channel SODIMM, Max 64GB support
StorageStandard 512GB SSD; 2×M.2 2280 SSD slots, supporting SATA 3.0 / PCIe x4 NVMe SSD
NetworkWi-Fi/Bluetooth + 4G Module (optional), SIM Card Slot support (optional)
Operating SystemWindows 10/Windows 11
BatteryStandard 6600mAh Li-ion Battery, Pull-Out Battery Compartment
Power AdapterStandard Power Adapter,Input: AC 100-240V, Output: DC 19V
KeyboardIP67 waterproof scissor switch keyboard with adjustable white backlight, with integrated touchpad and numeric pad;
Compliance with MIL-STD-810H, MIL-STD-461G-EMC-EMI-EMS-ESD optional;
Pry resistant version with rugged aluminum alloy plate optional.
I/O InterfacesUSB 3.0 Ports ×2
USB 2.0 Port ×1
LAN (RJ45) Ports ×2
Audio In/Out ×1
HDMI Video Output ×1
Type-C Port (DP 1.4 support, 4K@60Hz
high-definition display)
Serial Port (RS232/485/RS422 support) ×1
Touch ControlTouchpad (with Left/Right Buttons)
AudioBuilt-in Stereo Speakers & Built-in Microphone
LED IndicatorsNumeric Keypad Indicator & Hard Drive Activity Indicator
ColorBlack (customizable)
DimensionsApprox. 390 mm × 280 mm × 59 mm
WeightApprox. 7kg
Environmental adaptability
Operating Temperature-20°C ~ +50°C
Storage Temperature-40°C ~ +70°C
Humidity Range5%~95% Relative Humidity (Non-Condensing)
Environmental Protection RatingIP65 Rated, Vibration and Shock Resistant
