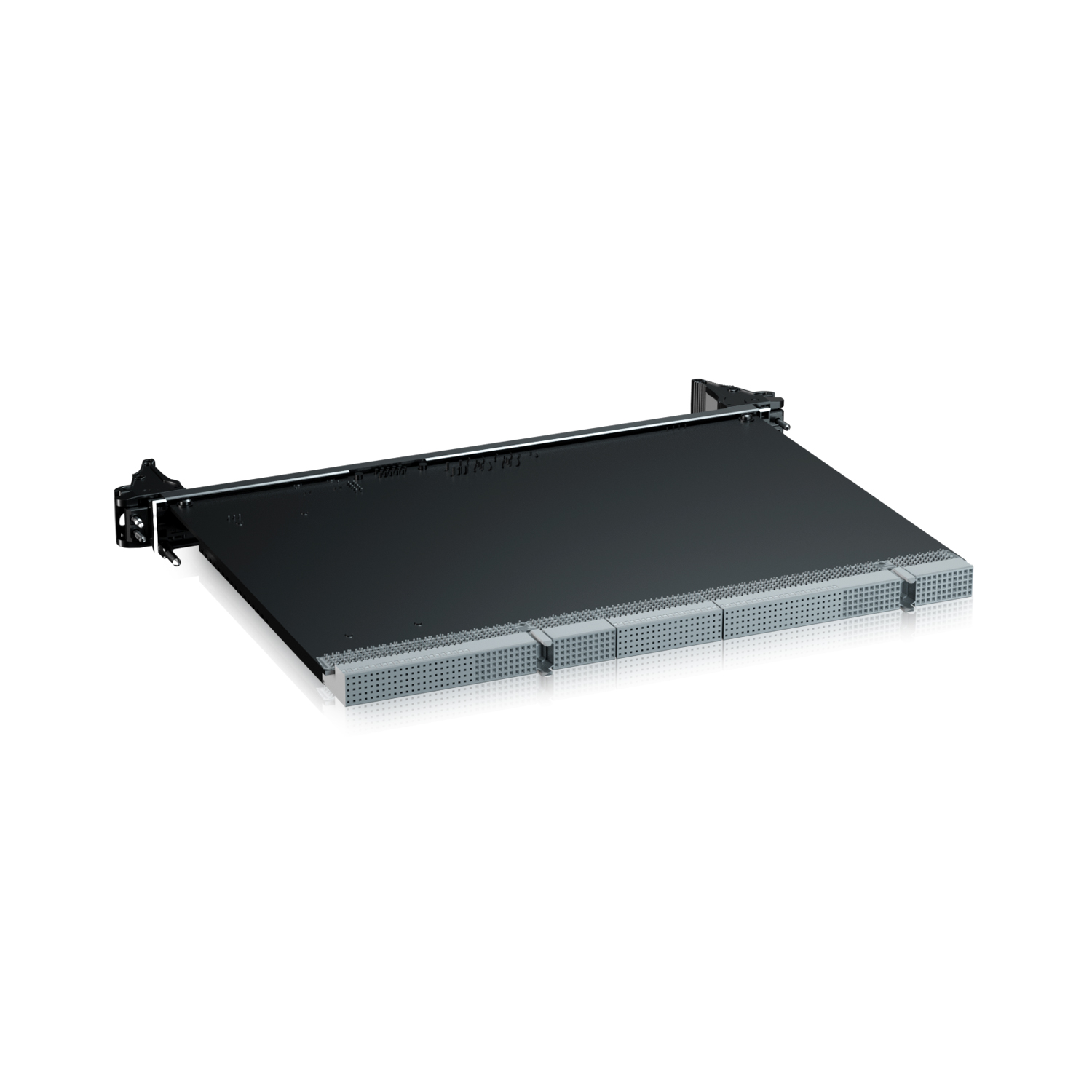

• Supports 3rd generation Intel Core™ i7/i5/i3 high-end processors,
  equipped with Intel QM77 high-end PCH • On-board 4GB DDR3 memory (8GB optional) • Provides 2 mSATA sockets, on-board SSD (16GB/32GB/64GB optional) • On-board 4 Gigabit Ethernet cards • Support VGA+DVI1/VGA+DVI2/DVI1+DVI2 independent display or
  combined display
• Compatible with PICMG2.0 R3.0/PICMG2.16 R1.0

RGD-MBD-C6I02

Detail

TECHNICAL SPECIFICATIONS



CPU

On-board Intel Core™ i7-355LE processor, dual-core four-thread, 2.5GHz (up to 3.2GHz), 34M Cache, 22nm,

25W Supports Intel Core™ i7/i5/i3 third generation processors

ChipsetOn-board Intel QM77 PCH
Memory

On-board 4GB DDR3 SDRAM, Onboard 8GB DDR3 SDRAM (optional)

BIOSSPI Flash
Graphics Card

Support 1-channel VGA+2-channel DVI graphics card,dual-channel independent graphics card

Sorage

2 x standard mSATA slots, SSD (16GB/32GB/64GB optional)

Network Card

5 x Intel 82574L Gigabit network cards,each network card has exclusive PCIE×1 resource

Sound Card:On-board 1x Realtek ALC892
OS

Windows7, Linux, VxWorks, XP, etc.

Power SupplyStandard CPCI power supply, AT mode, automatic power-on/ATX mode, power on button (configurable)
Dimension233mm x 160mm x 4HP
Working Temperature

-20℃ ~ + 55℃, 0% ~ 90% non-condensing humidity,

-40℃ ~ + 55℃, 0% ~ 90% non-condensing humidity (optional)

Storage Temperature-45℃ ~ + 75℃, 0% ~ 90% non-condensing humidity
CPCI Interface

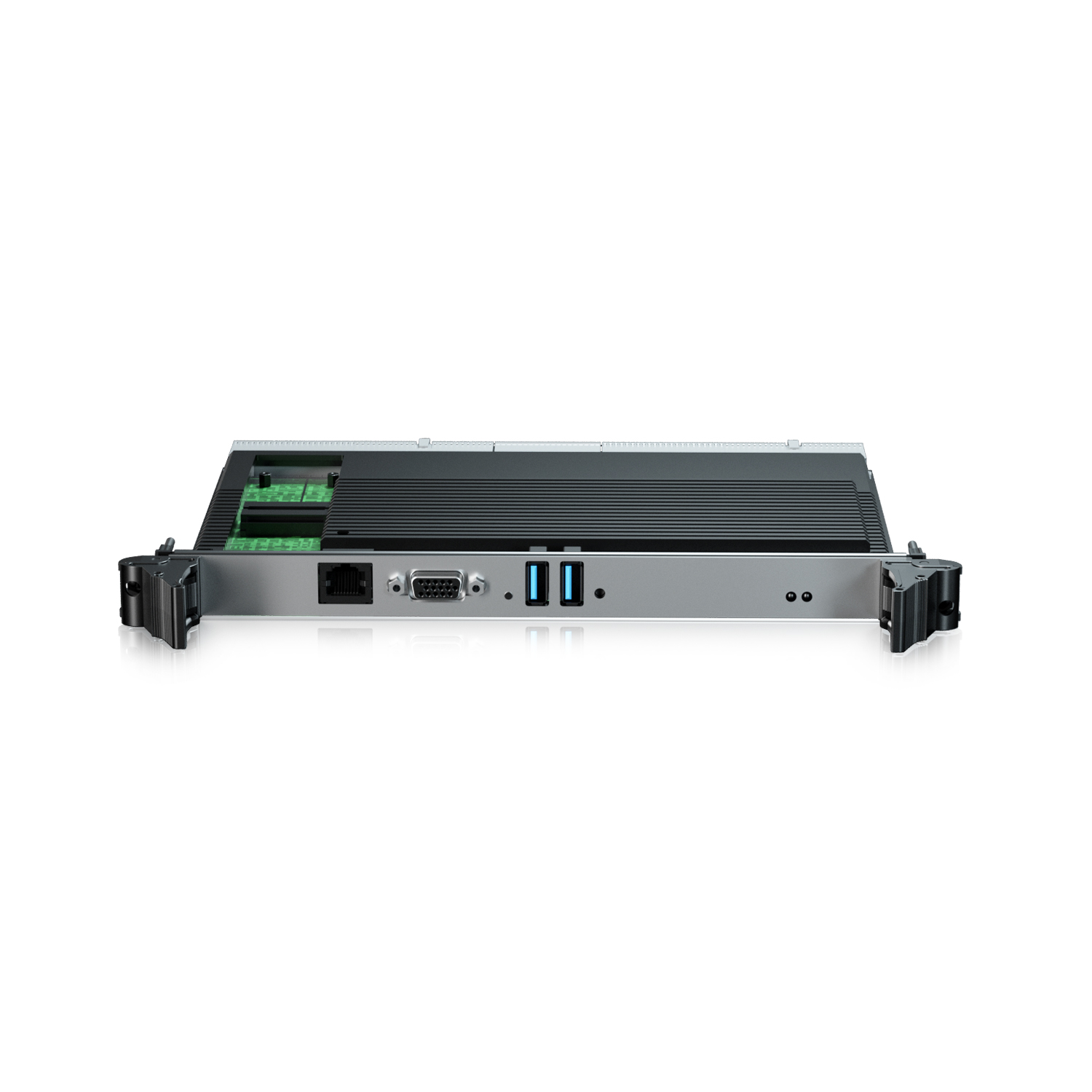

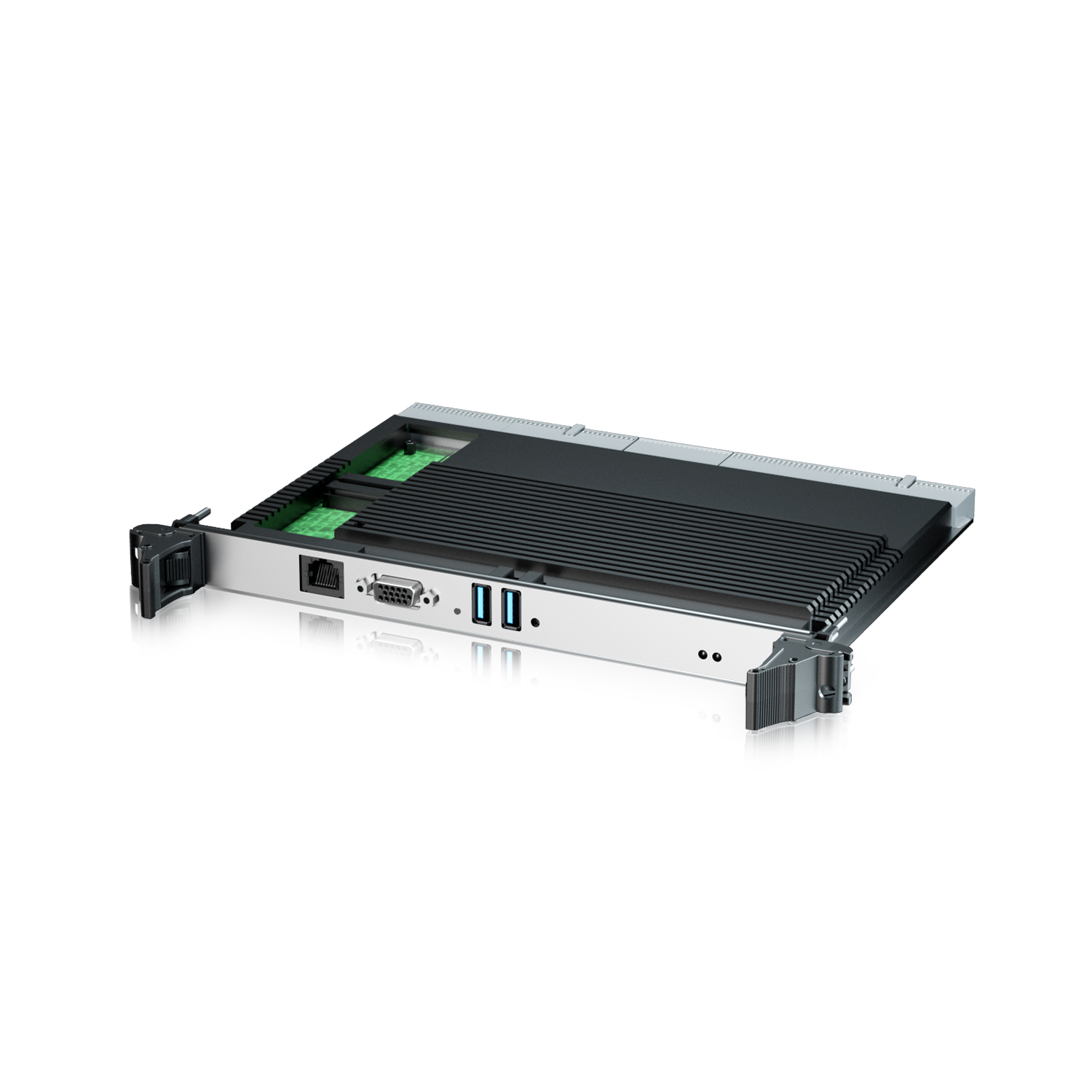

Front panel IO resources and buttons: 1 10/100/1000mbps RJ45, 1 VGADB15, 2 USB 2.0 Type-A,

Reset Button Post-IO resources: 4-channel USB 2.0, 4-channel RS-232,

2-channel DVI, 2-channel SATA2.0, 1-channel IDE,1 channel PS/2,

1 channel audio, 1 channel LPT, 1 channel FDD
