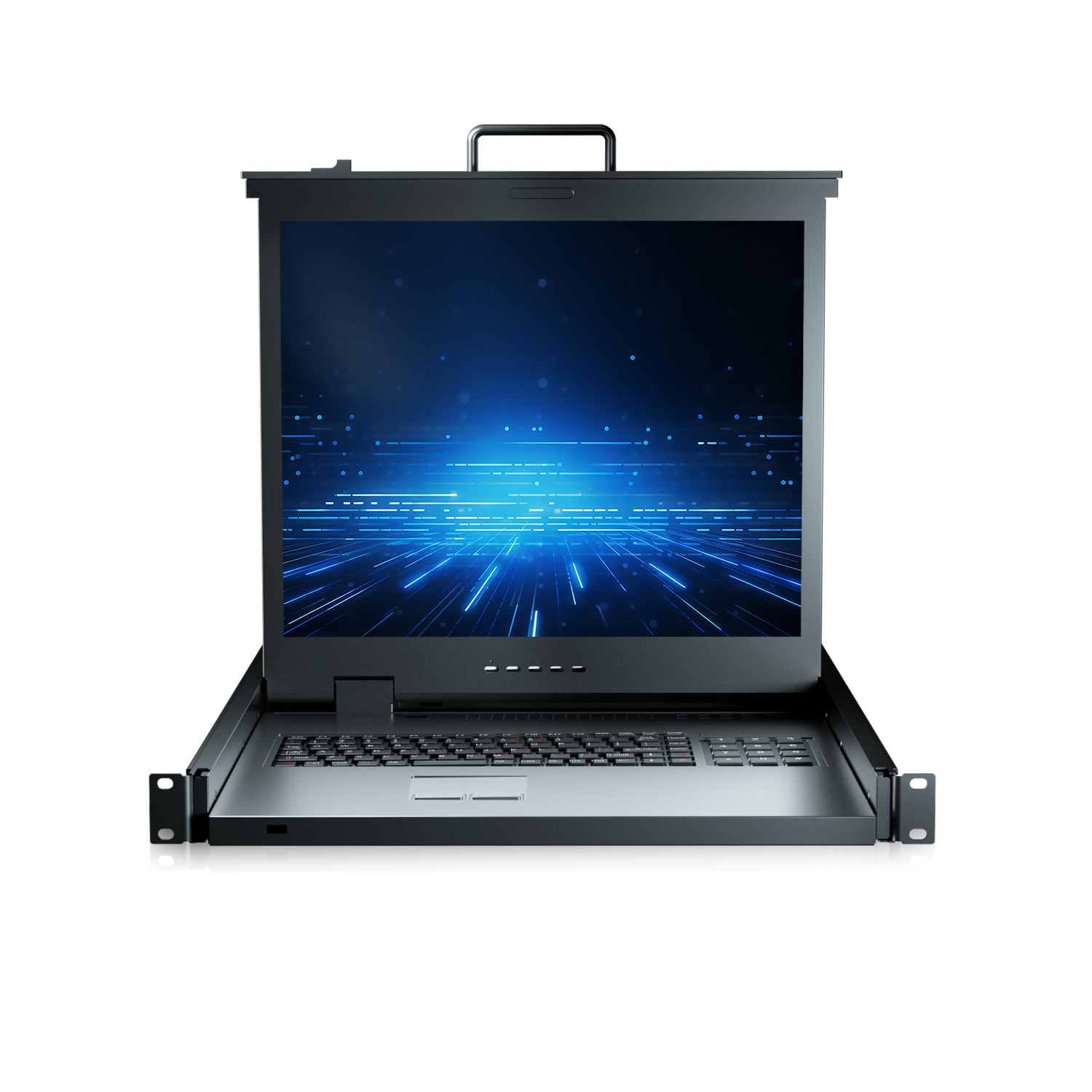

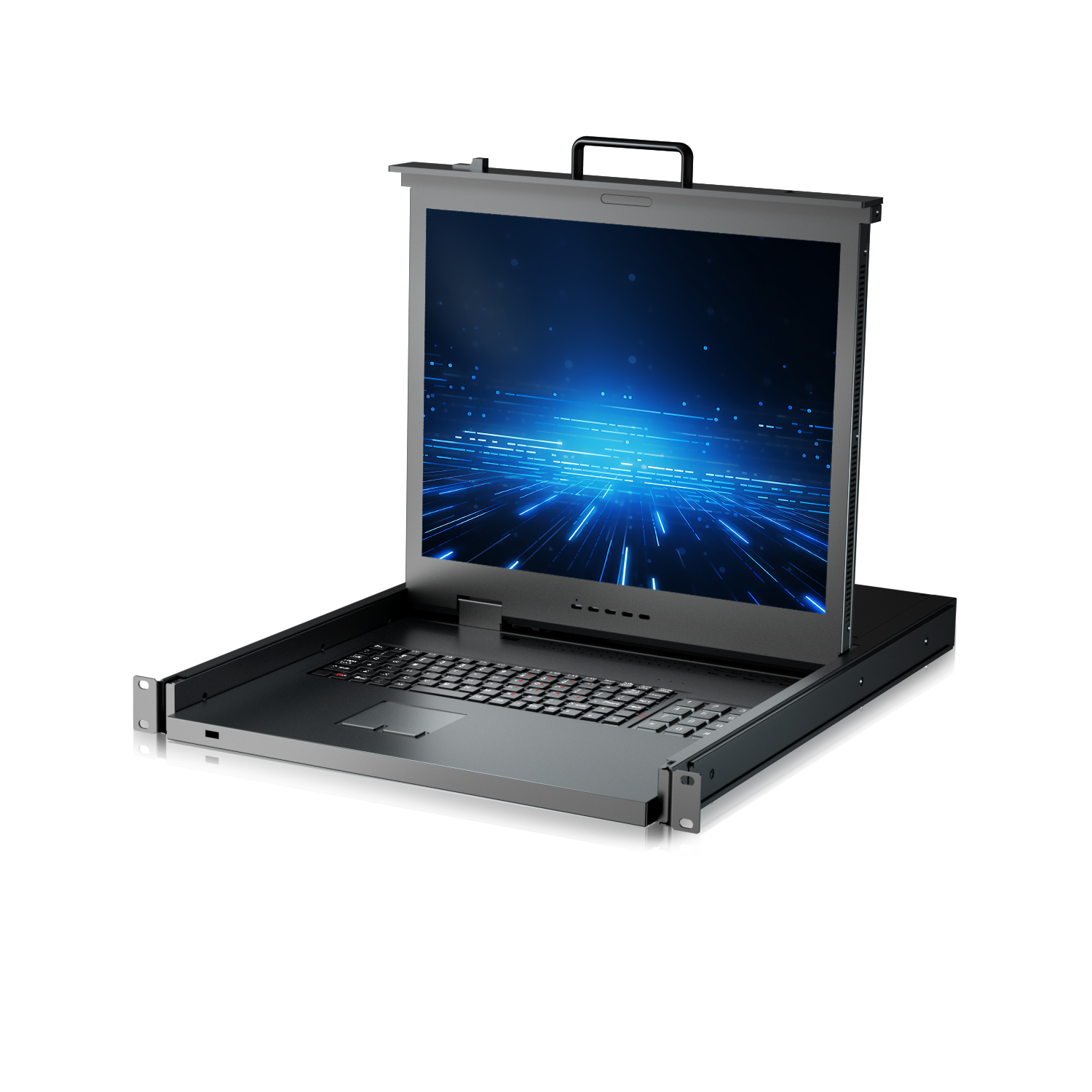

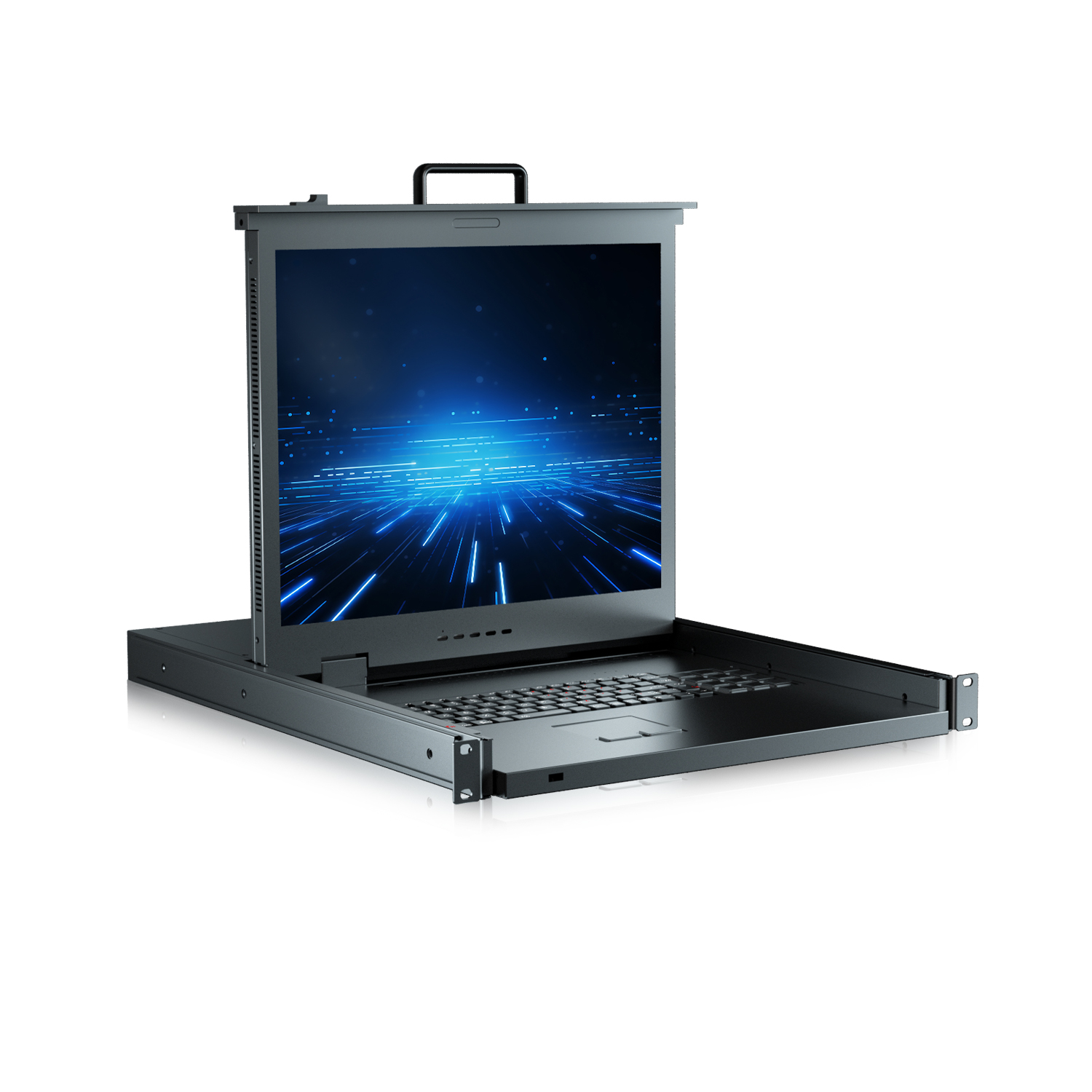

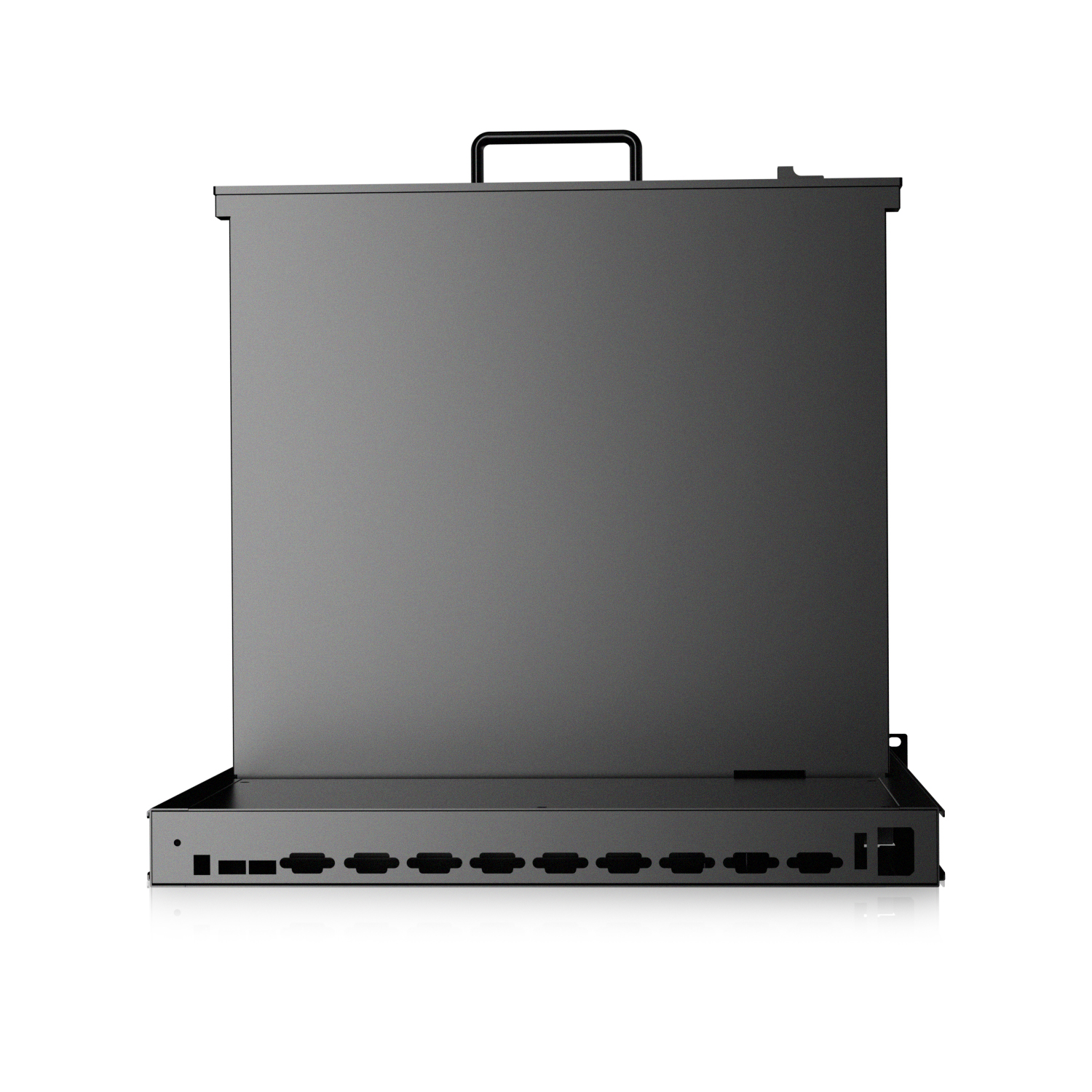

• Integrated 19" LED display/keyboard/mouse/switch four-in-one machine
• LED LCD display adjustment function, guide rail with self-locking device
• Adopts with withdrawing installation design and length can be
   adjusted to fit the rack space
• Support a variety of brand industrial computer and the sever, eg:
   IBM、DELL、HP、SUN、Lenovo、advantech、EVOC etc.

RGD-KVM-1908CI-CAT5

Detail

TECHNICAL SPECIFICATIONS



Computer Connect8 computers, switching cascade can reach 128 computers
Port ConnectorUSB VGA CAT5 module cable; USB HDMI CAT5 module (optional)
Front USB &VGA,IP

Local USB keyboard and mouse, VGA display; remote IP control (optional)

Swith ModeOn-screen menus, hot keys, buttons
Hot KeysScroll-Lock / Caps-Lock /Num-Lock / KVM OSD
LCD Size

19" TFT   LED, Resolution: 1280*1024 @60HZ, Max Color: 16.7M, Brightness: 300nits, Contrast Ratio: 700:1,

Pixel Pitch: 377*300 4:3 / 0.293 x 0.293 mm

Keyboard/Mouse

104 Keys Keyboard   with touchpad (scroll wheel option)

Power InputBuilt-in power supply: AC100-240V 47-63Hz, 35W; or power adapter: 12V 3.33A, the default AC built-in power supply is shipped.
Actual power consumption18W
OS

Inspur, Dahua, Huawei, Sugon, HP, DELL, Lenovo and other architecture original servers and Advantech,EVOC, series and other X86 and ARM industrial computers, support Kirin, Android, WinXP, LINUX,Ubuntu, etc. operating system

MaterialHigh-strength corrosion-resistant sheet metal
Cabinet ColorHigh-temperature spray Black
Dimension592.0mm x 465.0mm x 44.0mm (L x W x H)
Withdraw Distance45MM
Opening Height413MM
Install the cabinet800-1040mm
WeightN.W. 13.75KG, G.W. 19.00KG
Working Temperature0℃ ~ +60℃
Storage Temperature-20℃~ +70℃
Humidity0%~80%
