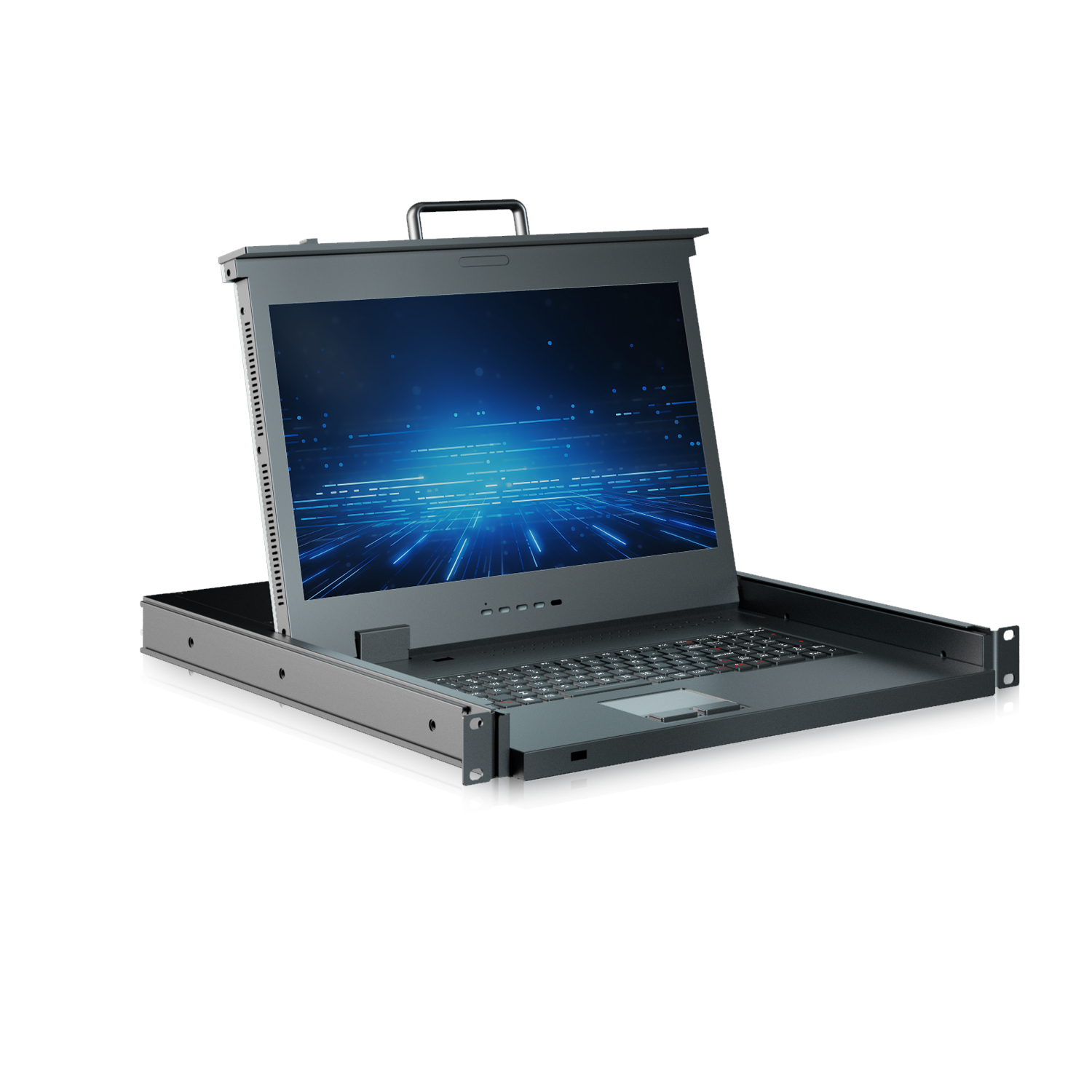

• Integrated 17.3" LED display/keyboard/mouse/switch four-in-one machine
• LED LCD display adjustment function, guide rail with self-locking device
• Support local control, 1000M Intel IP remote control
• Adopts with withdrawing installation design and length can be adjusted
   to fit the rack space
• Humanized design, can be installed and removed by only one person,
   which improves the  efficiency of the administrator.
• Support a variety of brand industrial computer and the sever, eg: IBM、
   DELL、HP、SUN、Lenovo、advantech、EVOC etc.
• Support various operating system: Microsoft、Linux、Unix etc.
REQUEST QUOTE

RGD-KVM-1708HCI-CAT5

Detail

TECHNICAL SPECIFICATIONS

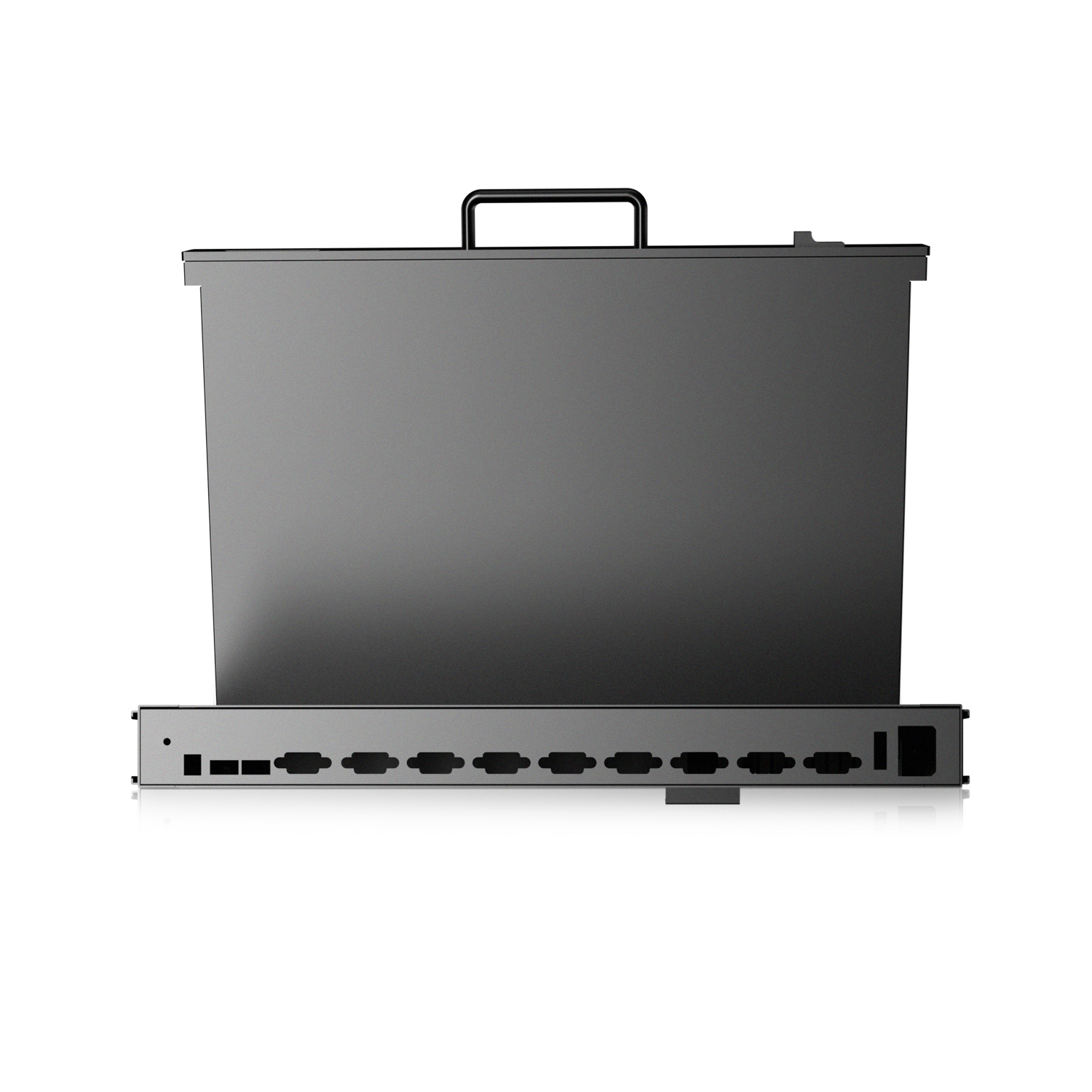

Computer Connect8 computers, Category 5 network cable 1-100 meters
Port ConnectorUSB VGA CAT5 module cable, USB HDMI CAT5 module (optional)
Control Port Type

Local USB keyboard and mouse, VGA display, remote IP control (optional) Swith Mode: OSD Menus, hot keys, buttons

Hot KeysScroll-Lock / Caps-Lock /Num-Lock / KVM OSD
LCD Size

17.3" TFT   LED, Resolution: 1920*1080 @60HZ, Max Color: 16.7M, Brightness: 300nits, Contrast Ratio: 700:1, Pixel Pitch: 380*215 19:9/0.198 x 0.198 mm

Keyboard/Mouse

104 Keys Keyboard with touchpad (with scroll wheel option) Power Input: Built-in power supply:

AC100-240V 47-63Hz, 35W, or power adapter: 12V 3.33A. The default AC built-in power supply is shipped

Power InputBuilt-in power supply: AC100-240V 47-63Hz, 35W, or power adapter: 12V 3.33A. The default AC built-in power supply is shipped
Actual power consumption18W
OSMicrosoft/Linux/Unix etc. operating system
MaterialHigh strength anti-corrosion sheet metal
Cabinet ColorHigh-temperature spray Black
Dimension450.0mm x 475.0mm x 44.0mm (L x W x H)
Withdraw Distance45MM
Opening Height325MM
Install the cabinet800-1040mm
WeightN.W. 10.75KG, G.W. 16.90KG
Working Temperature0℃ ~ +60℃
Storage Temperature-20℃~ +70℃
Humidity0%~80%
CertificateFCC/CE/Rohs
