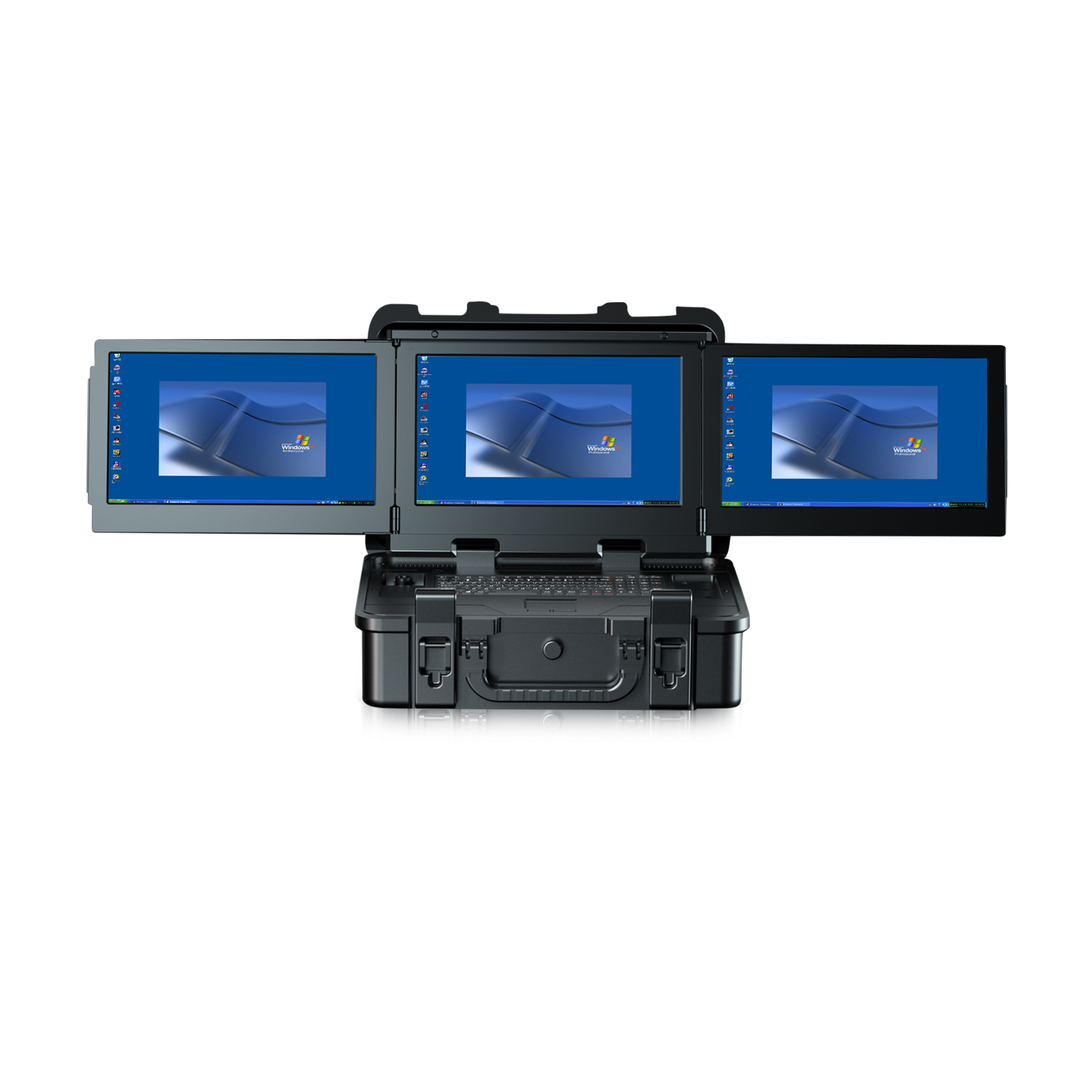

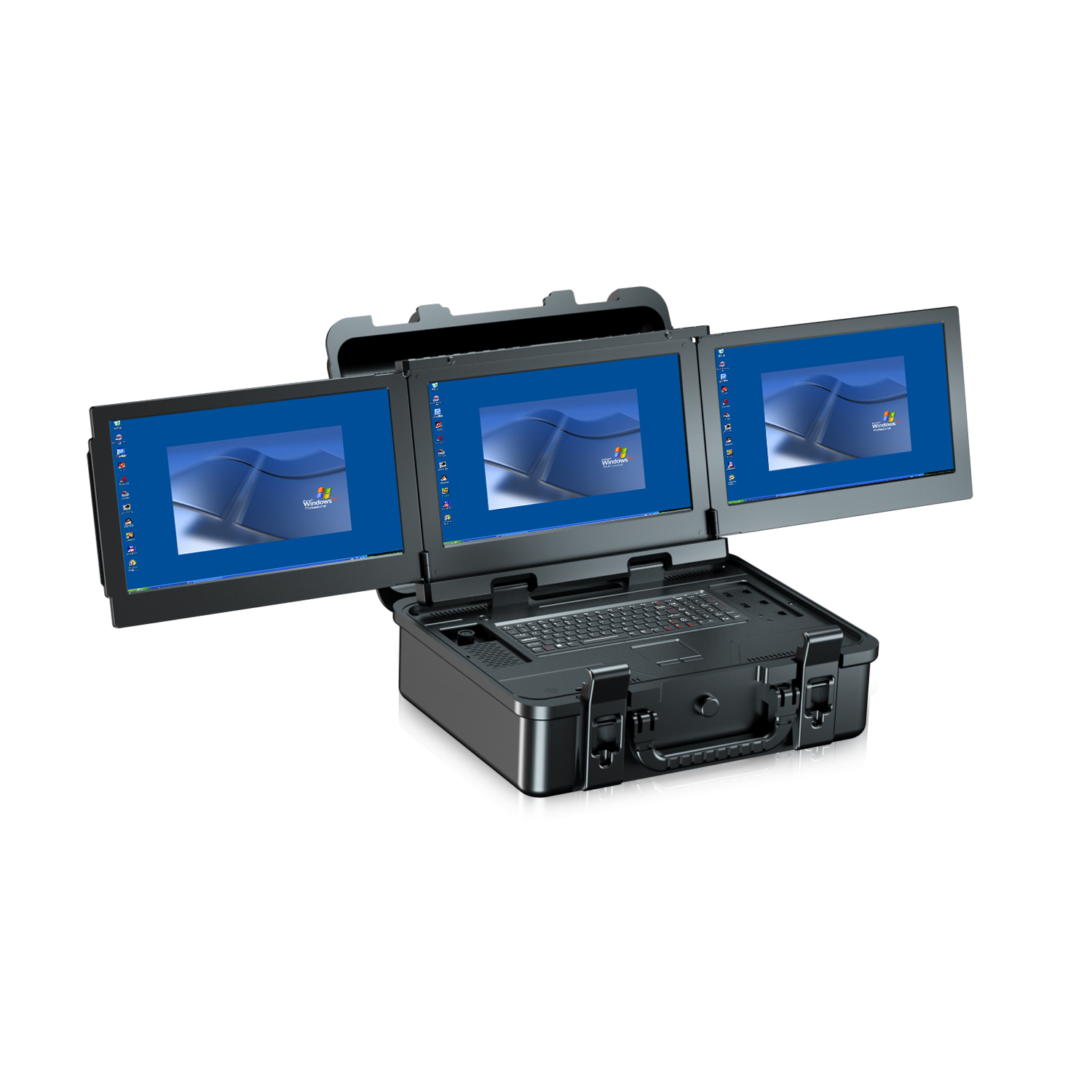

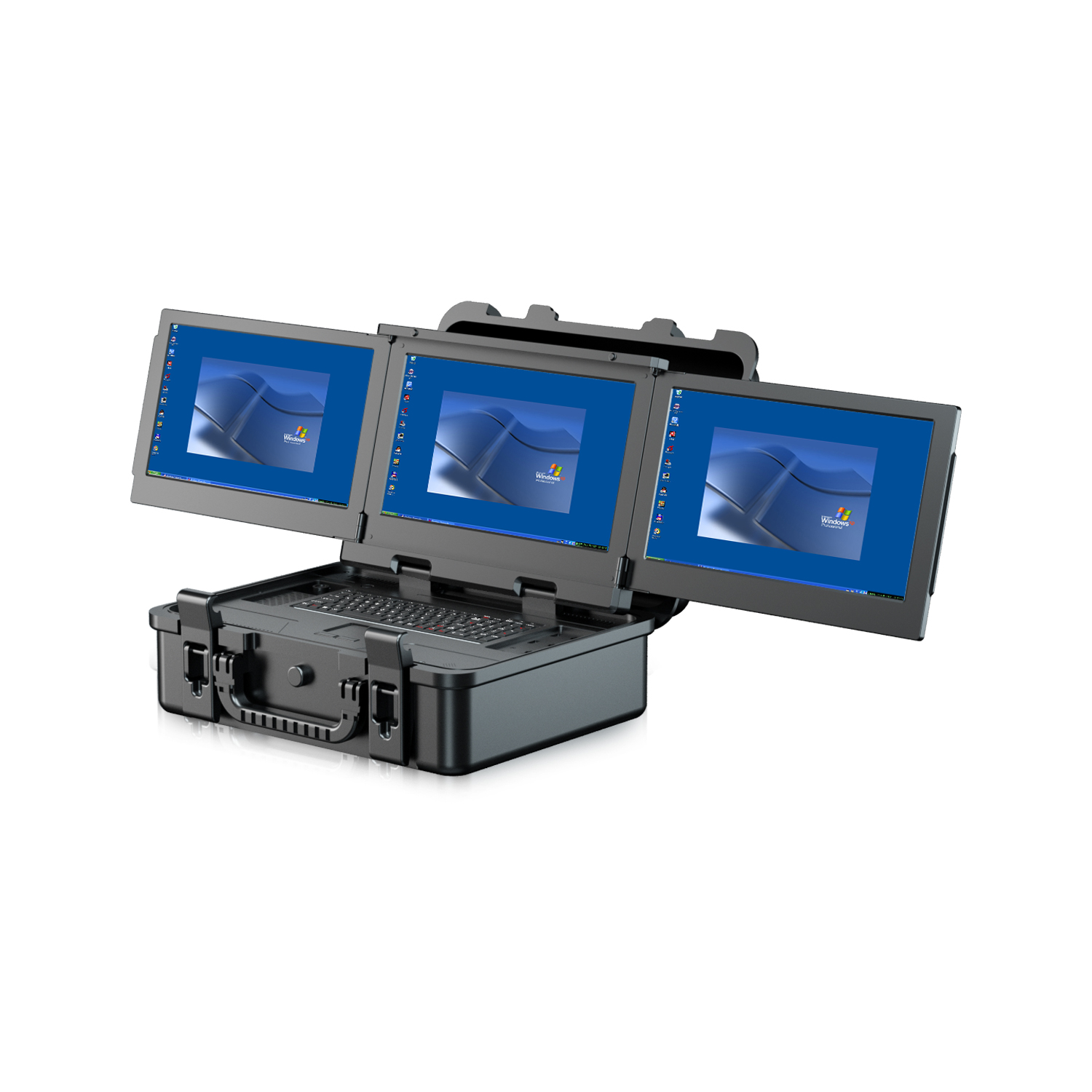

• Intel low-power I7/10th generation H-series processors • 3 x 15.6" display, 1920  1080 resolution • Windows7/10 operating system, Linux (optional) • Built-in 26000mAh long-life battery • MXM 1050 4G graphics card

RGD-LTP-BX1506U-0040

Detail

TECHNICAL SPECIFICATIONS


ProcessorIntel i7-770 0 HQ four cores and eight threads, I7-10875H eight cores+sixteen thread
MemoryDDR4 32GB
Harddisk1TB SSD, other capacities optional
Graphics CardMXM 1050 4G, other graphics cards optional
Display3 x 15.6" display, 1920 x 1080 resolution
Brightness600cd/m²
Battery26000mAh
OSWindows7, Windows10, Linux (optional)
ColorArmy green/Ice grey/Navy grey/Black
Dimension485.0mm x 178.0mm x 385.0mm
MaterialAluminum alloy+polyethylene case
Weight13.2KG
Working Temperature-20℃ ~ +50℃, -40℃ ~ +50℃ optional
Storage Temperature-40℃~ +60℃
Humidity5%~95%RH
Waterproof LevelIP65 (front panel)
Ports

2*USB3.0, 2*USB2.0, 1*RS232, 1*HDMI, 2*Gigabit Ethernet port, 1*S PK 1*MIC, DC 19V input (aviation plug)

external power adapter
