• Intel low-power 7th /10th generation HQ series processors • 15.6" HD LED display, 1920 x 1080 resolution • Built-in stereo dual speakers • Built-in 12000mAh long-life battery • Discrete graphics card NVIDIA 1050M 4G

REQUEST QUOTE

DATASHEET

Prev：RGD-LTP-BX1506U-0038

Next：RGD-LTP-AX1400U-612

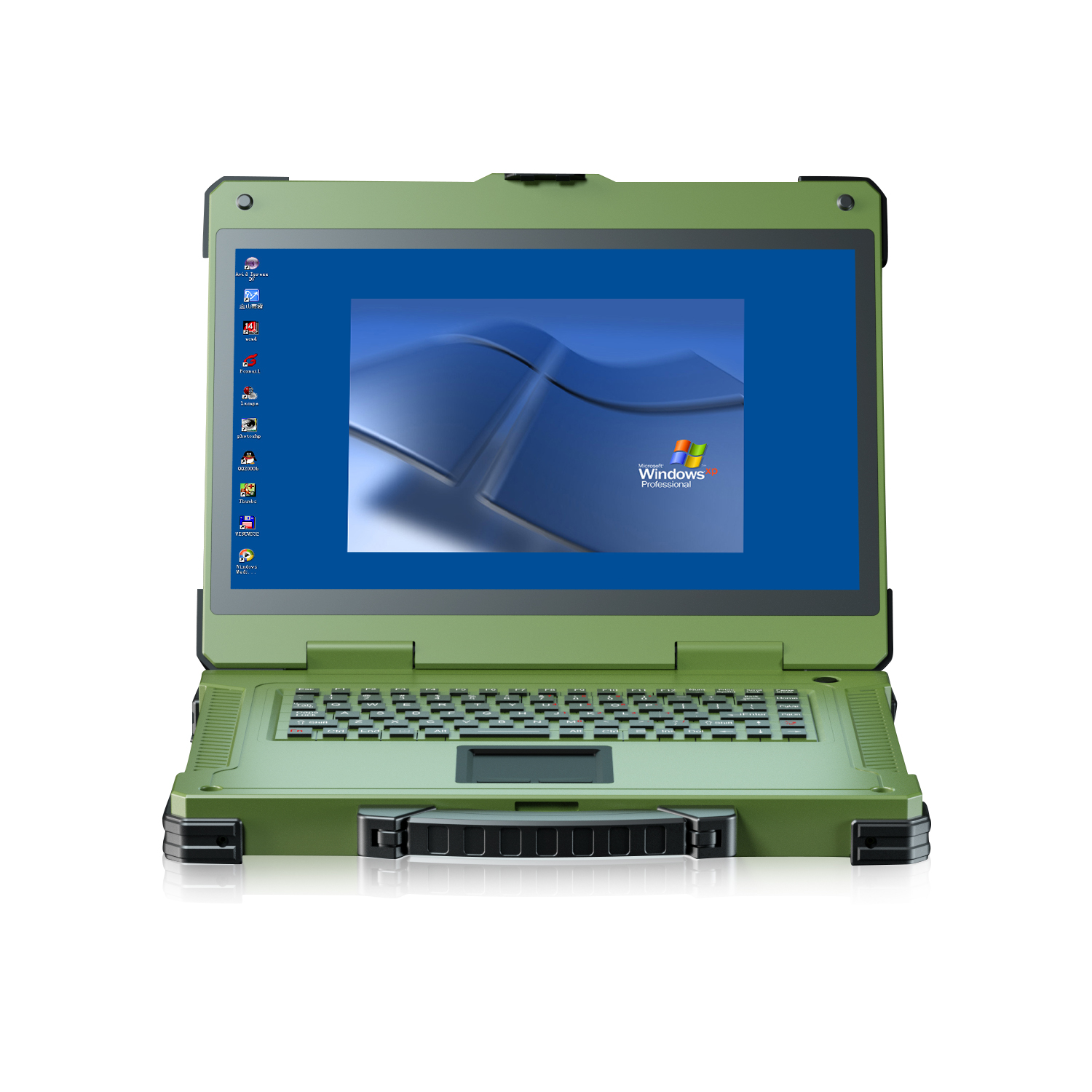

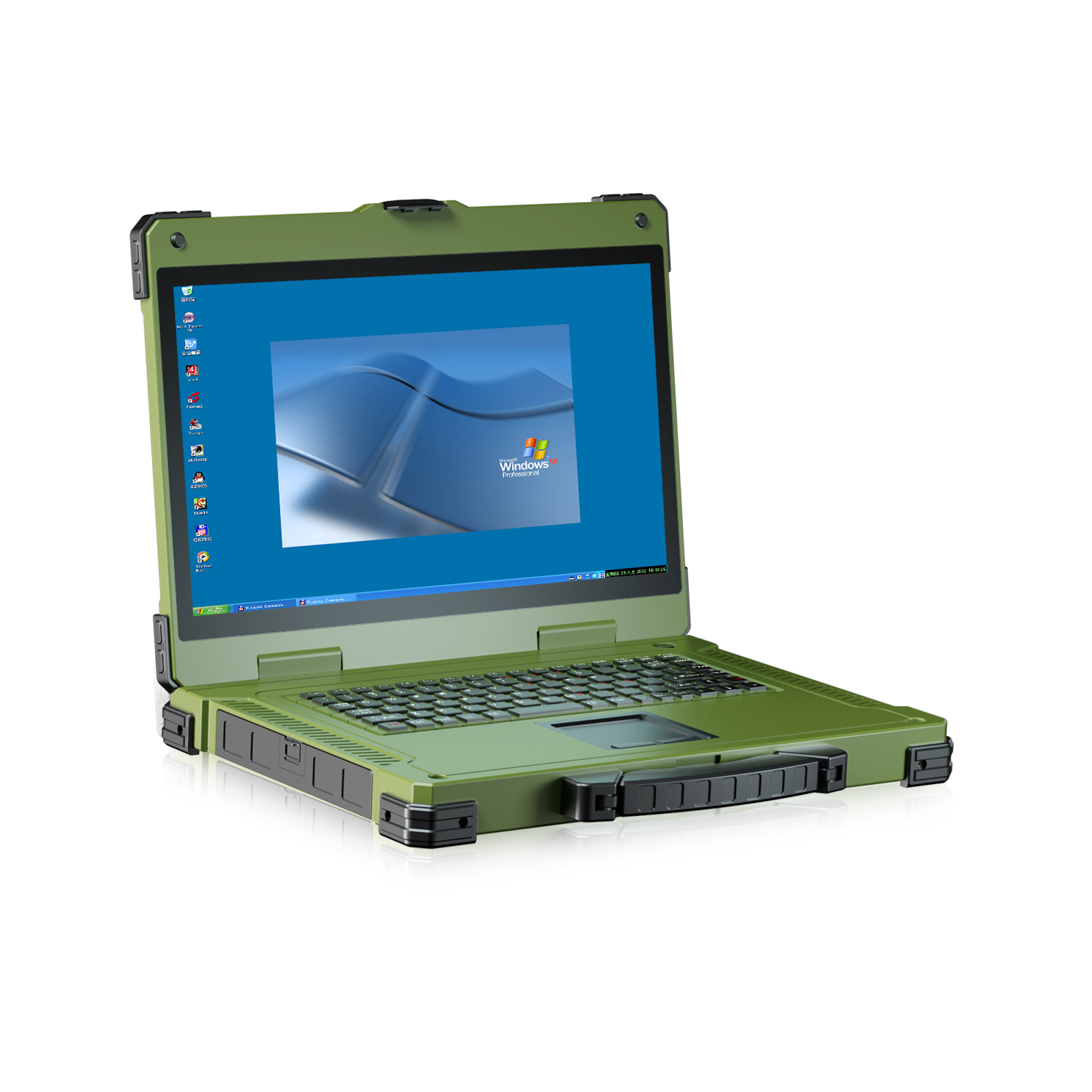

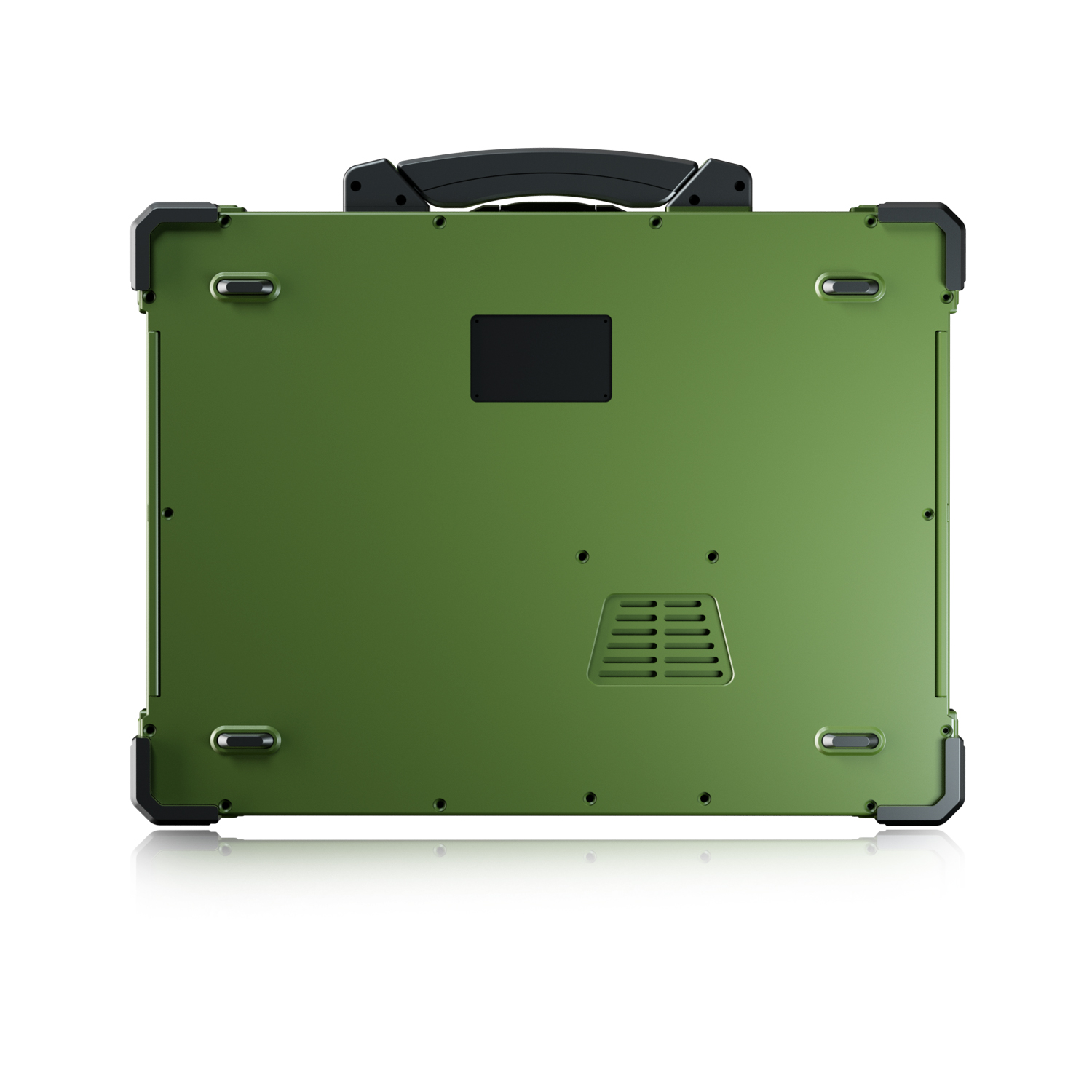

RGD-LTP-AX1506U-0024

Detail

TECHNICAL SPECIFICATIONS

Processor	Intel Core i7-7700HQ quad-core eight-thread processor, clocked at 2.8GHz
Memory	DDR4 32GB
Harddisk	1TB HDD+256GB SSD, other capacities optional
Graphics Card	MXM 1050 4G, other graphics cards optional
Display	15.6" HD LED display, 1920 x 1080 resolution
Battery	12000mAh
Speaker	Built-in stereo dual speaker
CD-ROM Driver	Burning optical drive (optional)
OS	Windows7, Windows10, Linux (optional)
Color	Army green/Ice grey/Navy grey/Black
Dimension	378.0mm x 280.0mm x 50.0mm
Material	High-strength and high-quality magnesium aluminum alloy
Weight	5.5KG
Working Temperature	-20℃ ~ +55℃
Storage Temperature	-40℃~ +60℃
Waterproof Level	IP65 (front panel)
Ports	2USB3.0, 2USB2.0, 1RS232, 1HDMI, 2Gigabit Ethernet port, 1S PK 1*MIC, DC 19V input (aviation plug) extern al power adapter
