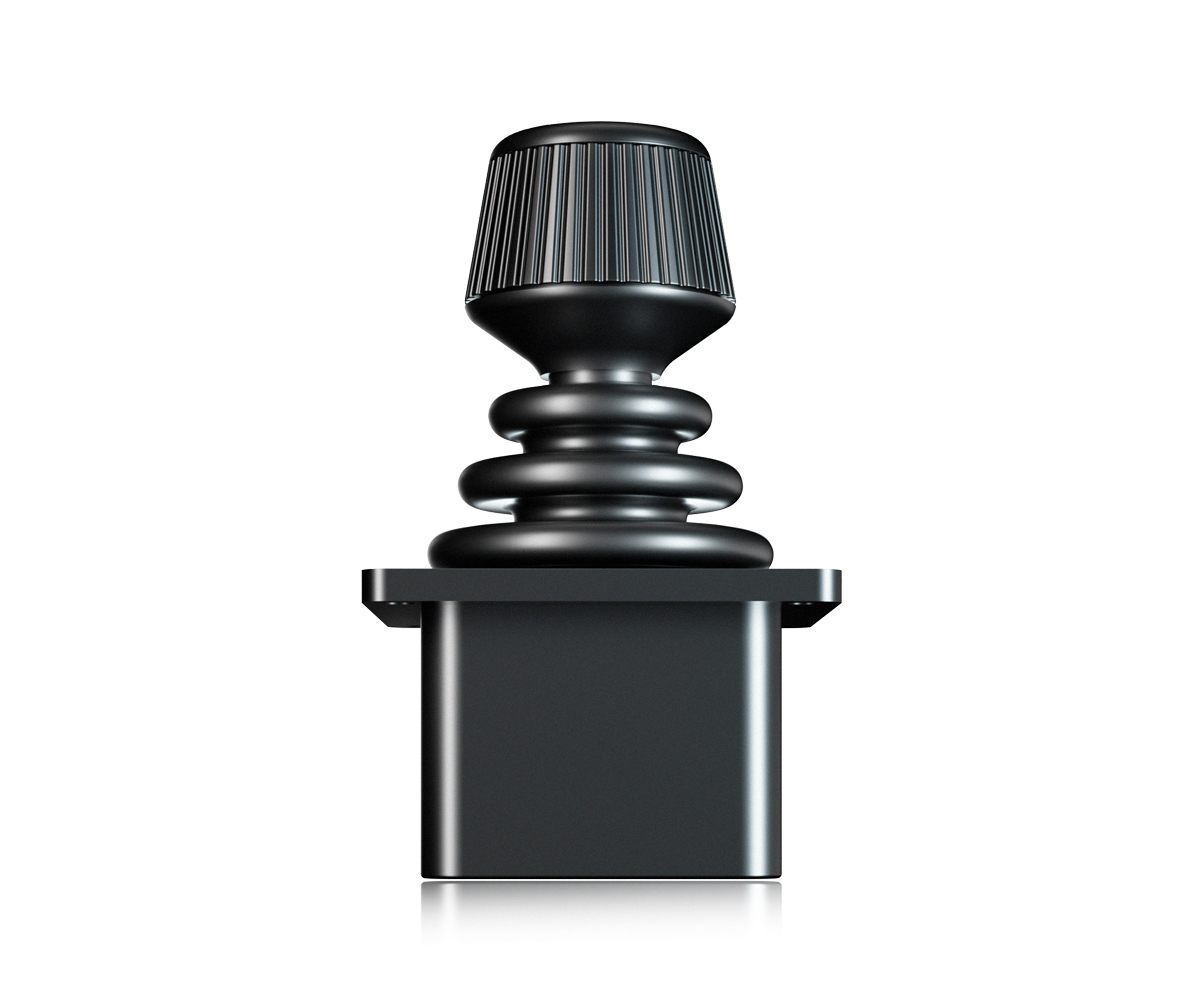

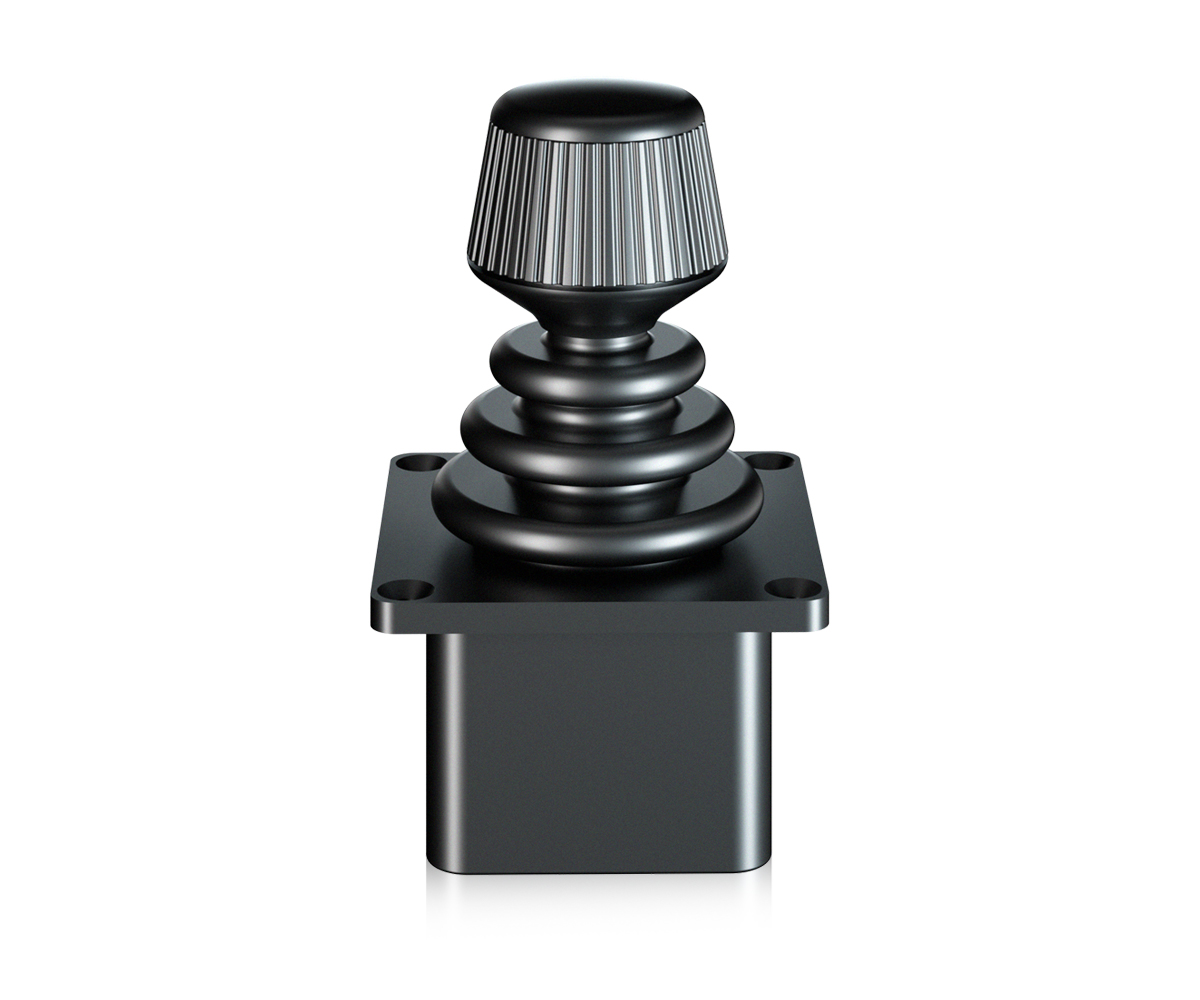

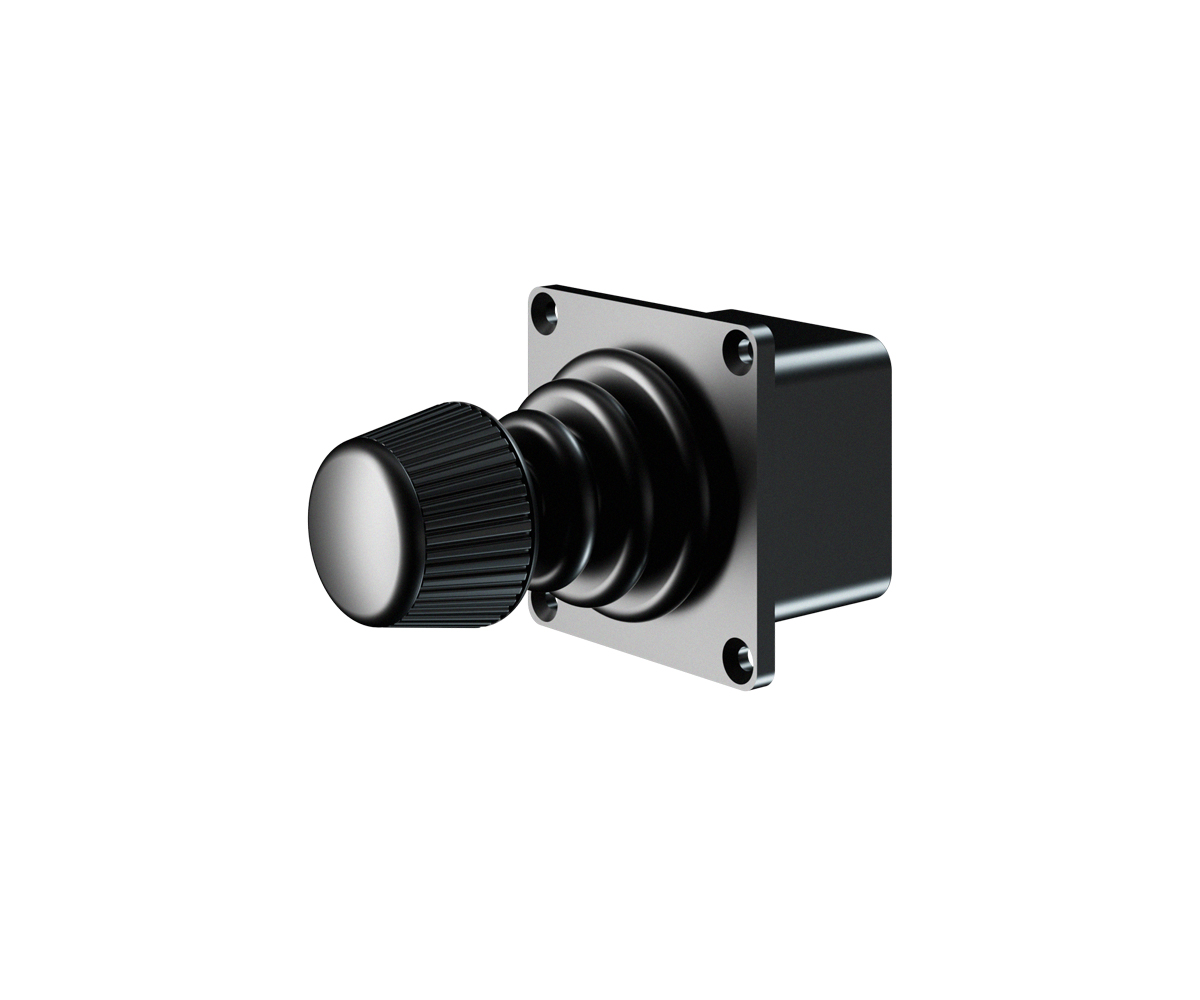

K-TEK-HC-5A3O

MECHANICAL DATA

Material

Aluminum alloy (black)

Dimension

52.0mm x 86.0mm (L x H)

X, Y axis operation strength

1~5 N

Rotation angle

18°± 2°

Z axis

Z axis self-reset, rotation torque: 0 ~ 4 N·cm

Angle 50° (±25°) maximum torque shall not exceed 8 N·cm

G.W.

0.20KG

Mechanical lifespan

500,000 cycles

ELECTRICAL DATA

Input voltage

5VDC

Output voltage

X-axis, Y-axis, Z axis: -5VDC～+5VDC±10%

Midpoint voltage: ±0.25VDC

Dead zone voltage pre-value: ±0.20VDC (subject to actual situation)

Maximum output voltage: +4.5VDC (minimum)

Minimum output voltage: -4.5VDC (maximum)

Power consumption

≤0.1W·h

Output interface

USB 2.0

Cable length

30cm

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +70℃

Storage temperature

-45℃ to +75℃

APPLICATION

Vehicle, aerospace, navy, maritime, Radar, console, navigation control etc.
