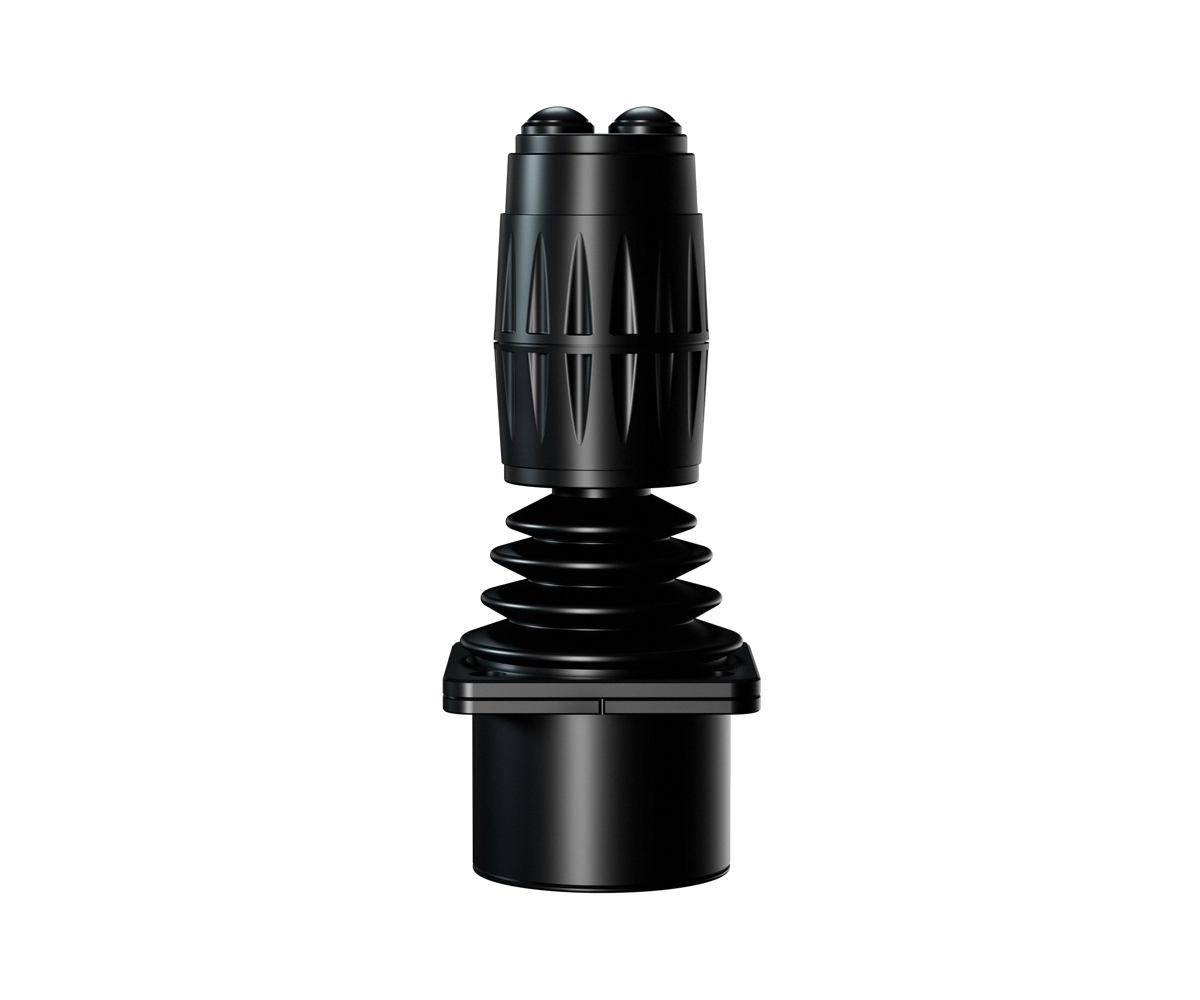

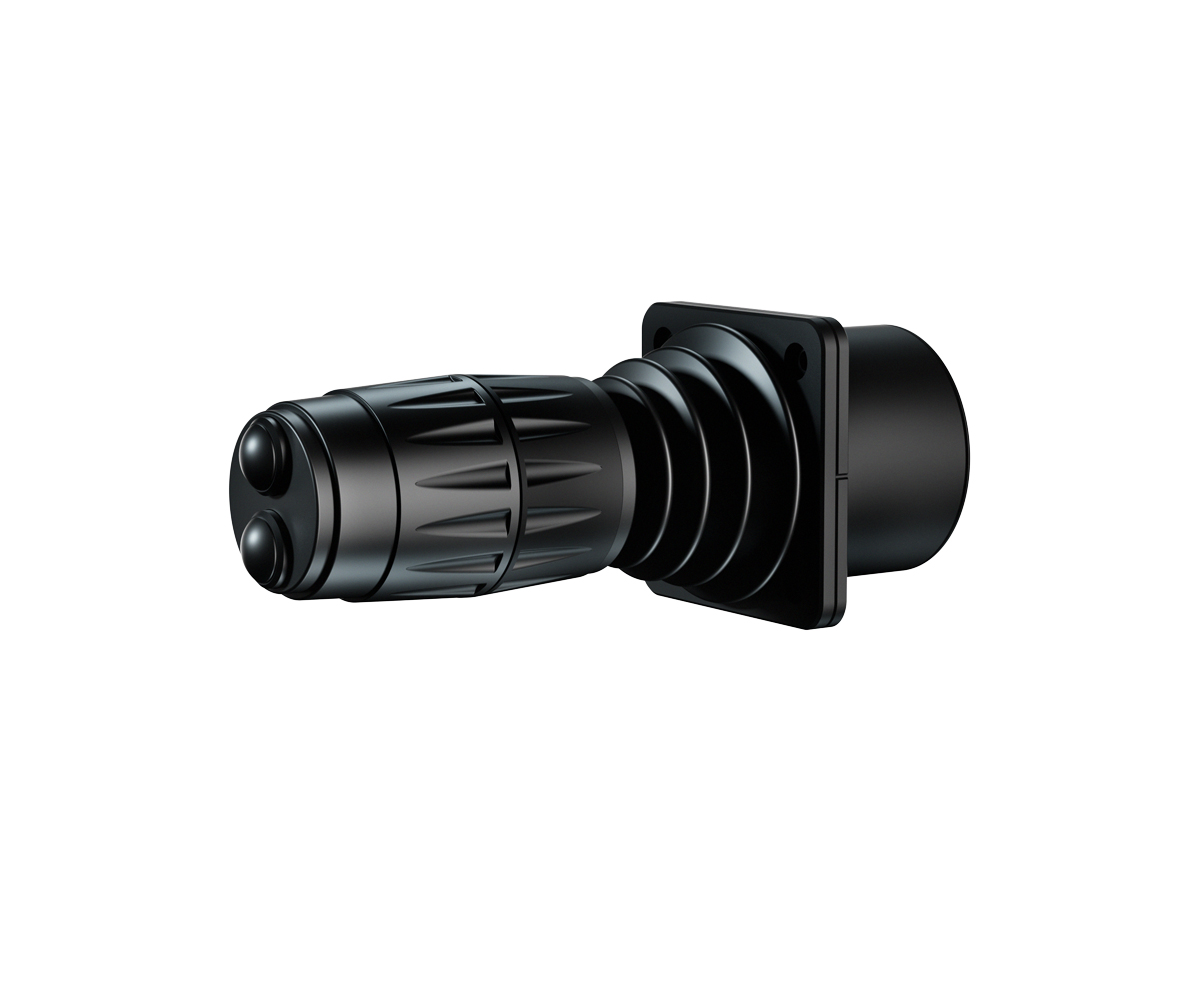

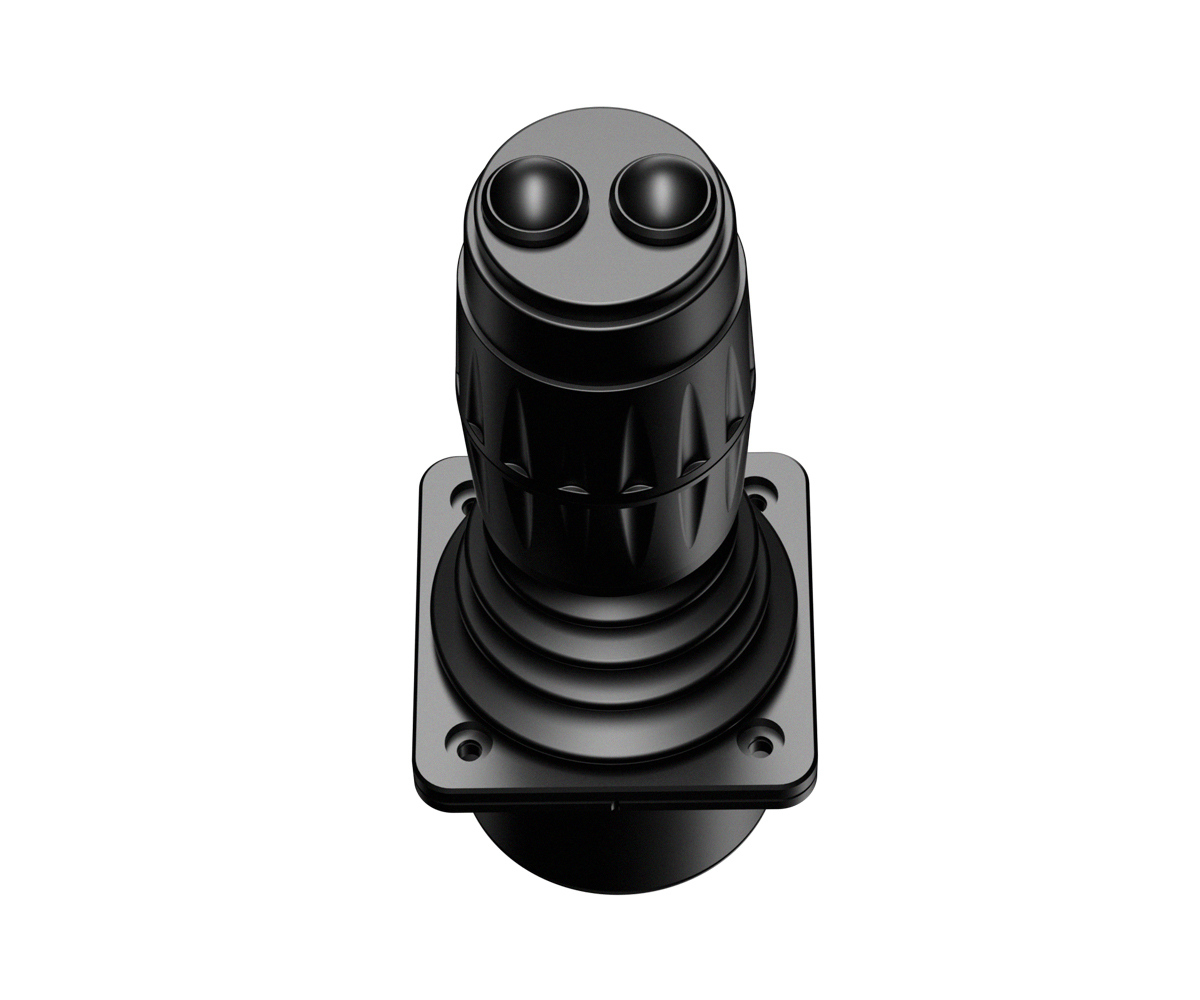

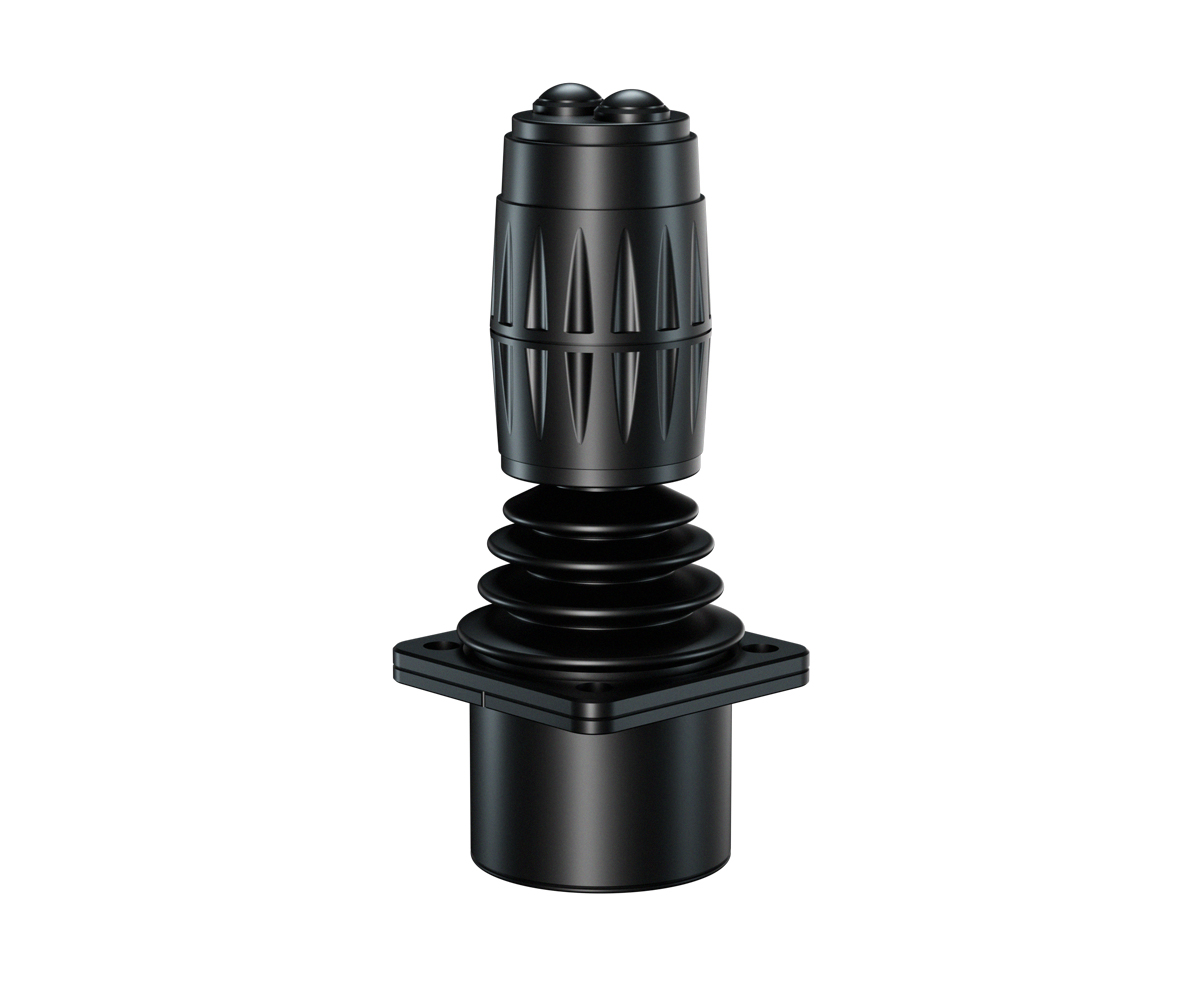

K-TEK-HC-5U2E

MECHANICAL DATA

Button

2 buttons

Material

Stainless steel, aluminum alloy (black)

Dimension

50.0mm x 119.5mm (L x H)

X, Y axis operation strength

0~5 N, Ultimate damage strength 12 N.

Rotation angle

25°± 2°from every direction to center

G.W.

0.20KG

Mechanical lifespan

100,000 cycles

ELECTRICAL DATA

Input voltage

5VDC

Current rating

50mA

Power consumption

0.25W

Output interface

USB 2.0

Button

S1/S2: Black self-reset switch, Normal-open

Cable length

1000± 100mm

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-25℃ to +55℃

Storage temperature

-30℃ to +60℃

APPLICATION

Vehicle, aerospace, navy, maritime, Radar, console, navigation control etc.
