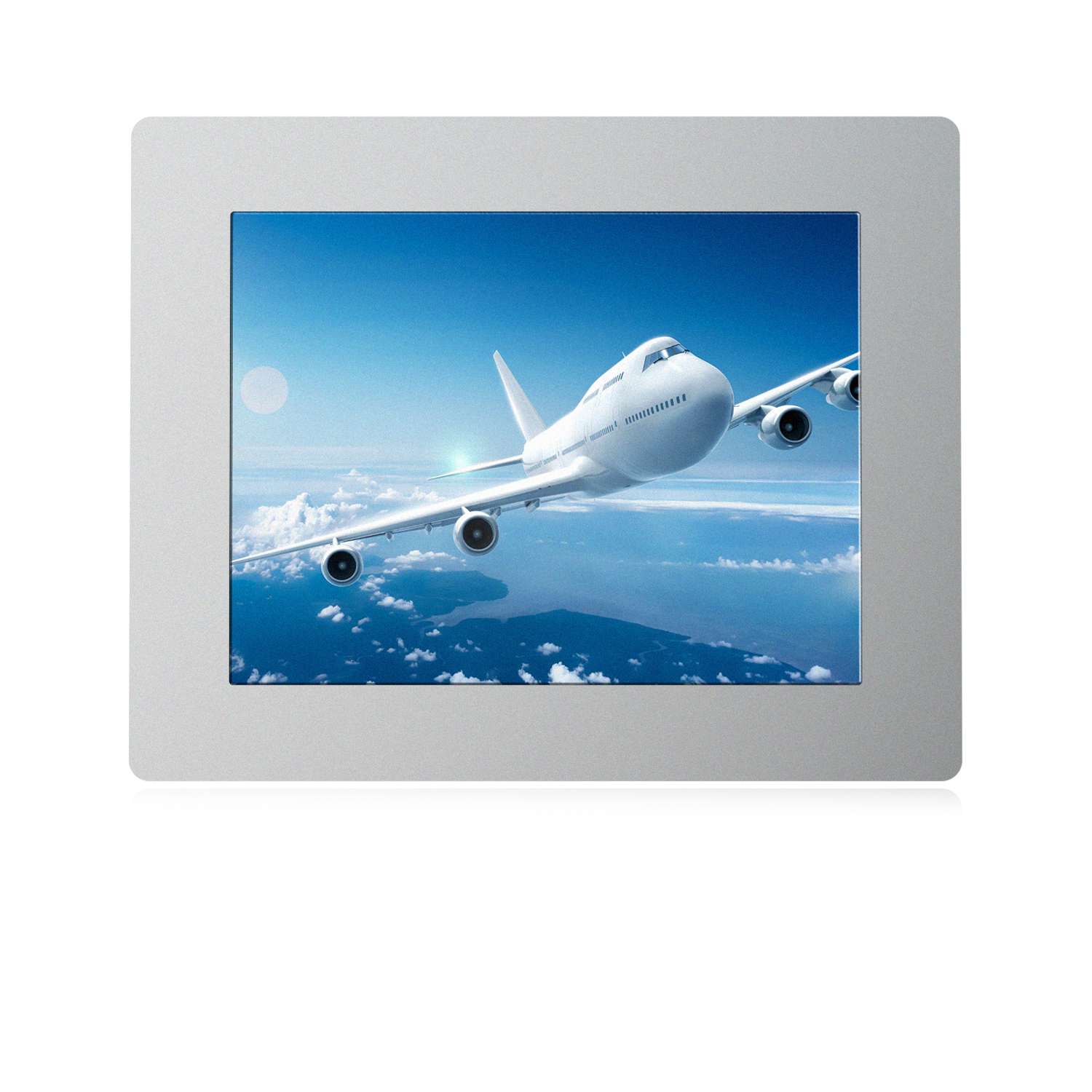

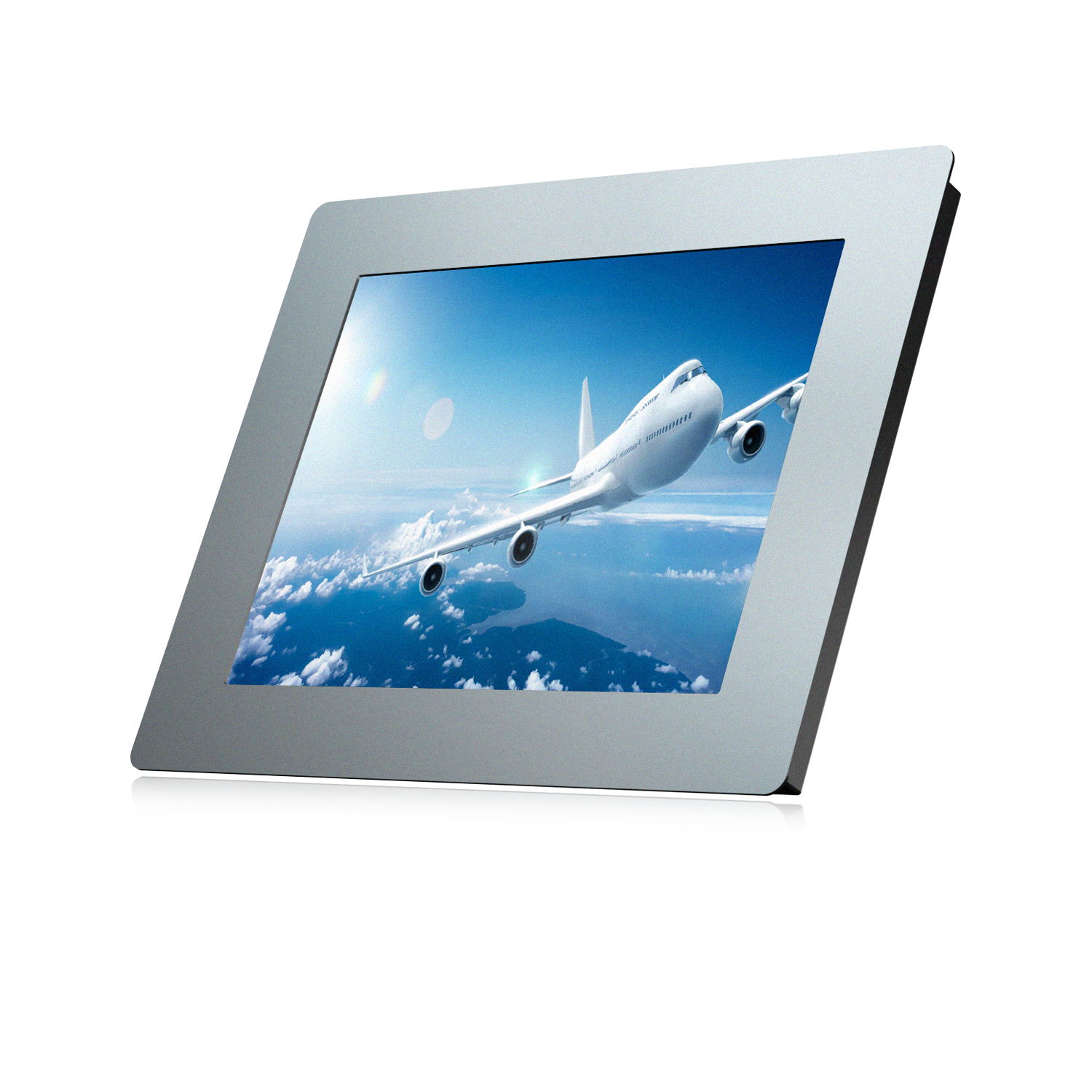

Display Size: 15 inches Resolution: 1024 x 768 Working Frequency: 60Hz Screen Brightness: 350cd/m² Material: Aluminum Alloy Dimension: 400mm*320mm*76mm Cabinet Color: Silvery white (optional)

RGD-DSP-A01500J-0001

Detail


TECHNICAL SPECIFICATIONS
Display Size:15 inches
Resolution:1024 x 768
Working Frequency:60Hz
Screen Brightness:350cd/m²

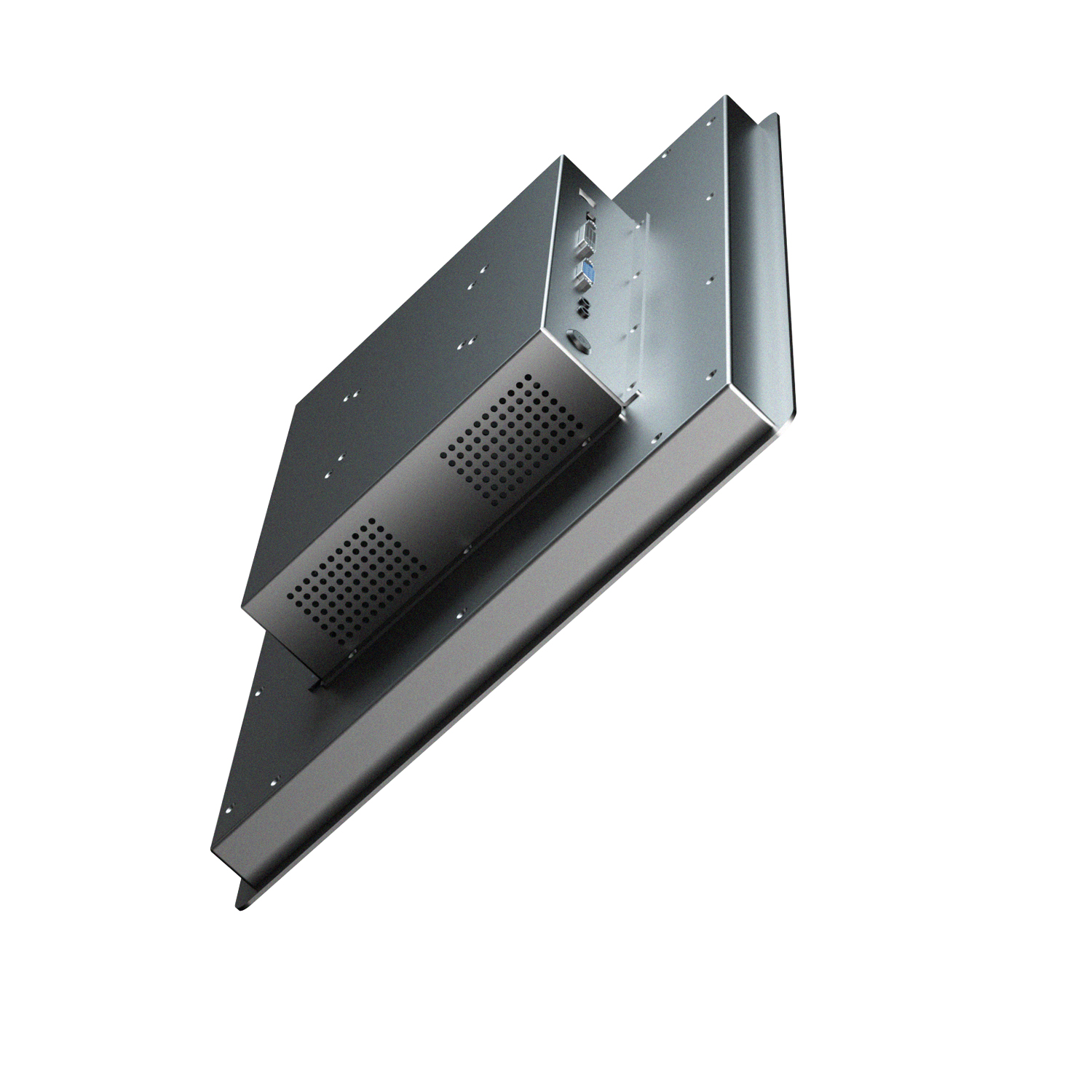

Port:1*AUDIO、1*MIC、1*GVA、1*DVI、1*HDMI、1*DC12V、1*Power
Material:Aluminum Alloy
Dimension:400mm*320mm*76mm
Cabinet Color:Silvery white (optional)
Weight:11.8KG

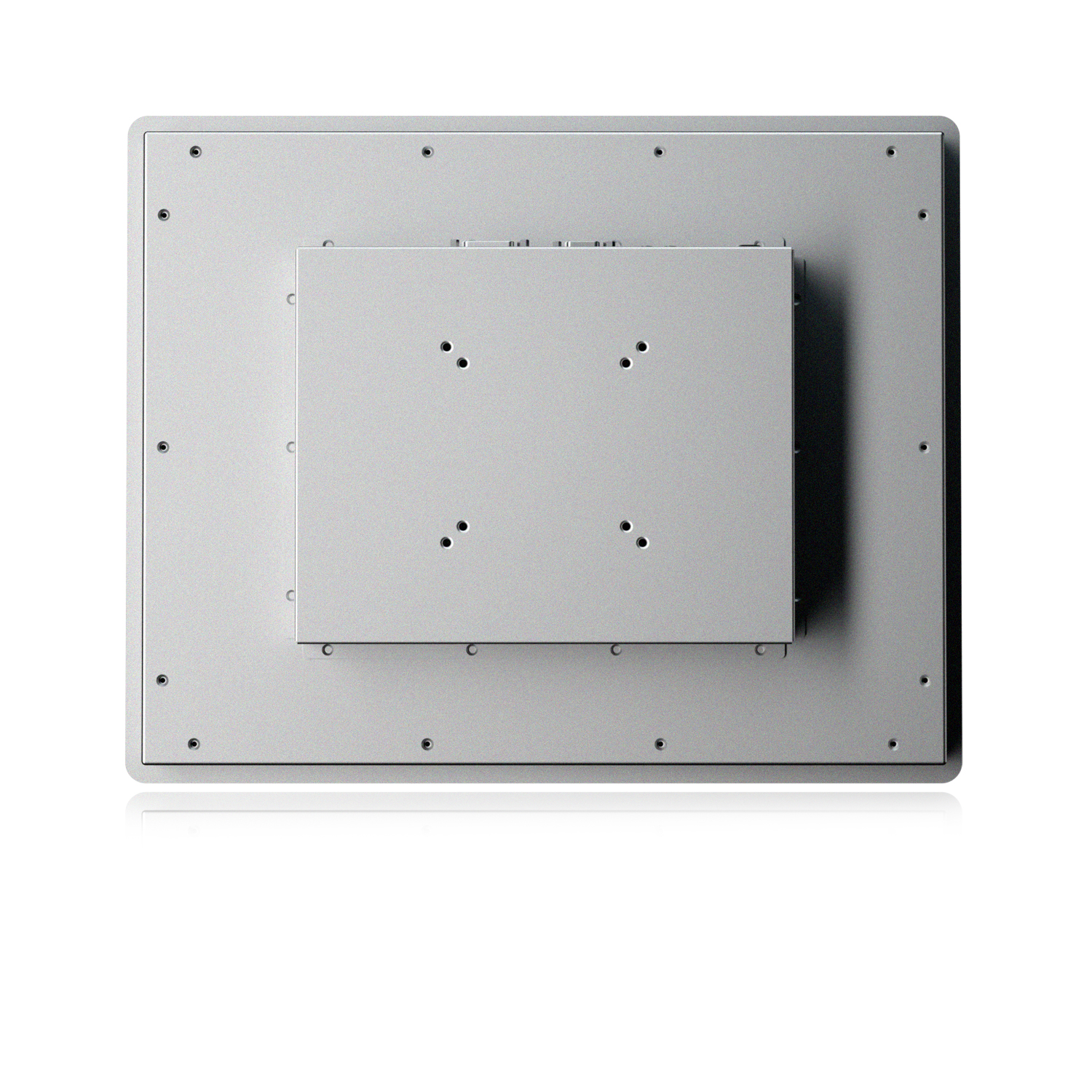

Mounting Solution:Panel Mount
Working Temperature:-20℃～+70℃
Storage Temperature:-20℃～+70℃
Electromagnetic Compatibility:
1, Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106 Conducted Susceptibility, Transients, Power Leads
CS112 Electrostatic Discharge Susceptibility
CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
RE102 10kHz - 18GHz   Radiated Emissions, Electric Field
RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
2, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)
